Derived Patterns in Binocular Rivalry Networks

  • Casey O Diekman1,

    Affiliated with

    • Martin Golubitsky1Email author and

      Affiliated with

      • Yunjiao Wang2

        Affiliated with

        The Journal of Mathematical Neuroscience20133:6

        DOI: 10.1186/2190-8567-3-6

        Received: 15 January 2013

        Accepted: 22 April 2013

        Published: 8 May 2013

        Abstract

        Binocular rivalry is the alternation in visual perception that can occur when the two eyes are presented with different images. Wilson proposed a class of neuronal network models that generalize rivalry to multiple competing patterns. The networks are assumed to have learned several patterns, and rivalry is identified with time periodic states that have periods of dominance of different patterns. Here, we show that these networks can also support patterns that were not learned, which we call derived. This is important because there is evidence for perception of derived patterns in the binocular rivalry experiments of Kovács, Papathomas, Yang, and Fehér. We construct modified Wilson networks for these experiments and use symmetry breaking to make predictions regarding states that a subject might perceive. Specifically, we modify the networks to include lateral coupling, which is inspired by the known structure of the primary visual cortex. The modified network models make expected the surprising outcomes observed in these experiments.

        Keywords

        Binocular rivalry Interocular grouping Coupled systems Symmetry Hopf bifurcation

        1 Introduction

        Wilson [1] argues that generalizations of binocular rivalry can provide insight into conscious brain processes and proposes a neural network model for higher level decision making. Here, we demonstrate that the Wilson network model is also useful for understanding the phenomenon of binocular rivalry itself by analyzing several rivalry experiments discussed in Kovács, Papathomas, Yang, and Fehér [2]. Mathematical analysis of these network structures (based on the theory of coupled cell systems and symmetry in Golubitsky and Stewart [35]) leads to predictions that are directly testable via standard psychophysics experiments.

        We begin by making a distinction between two types of perceptual alternations (Blake and Logothetis [6]): illusions due to insufficient information and rivalry due to inconsistent information. One of the standard examples of illusion is given by the Necker Cube shown in Fig. 1(a). There are two percepts that are commonly perceived when viewing the Necker cube picture: one with the yellow face at the back and one with it on top. There is not enough information in the picture to fix the percept and this ambiguity leads to the two percepts alternating randomly.
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig1_HTML.jpg
        Fig. 1

        a Necker cube illusion [7] and b rivalry [6]

        In rivalry, the two eyes of the subject are presented with two different images such as the ones in Fig. 1(b) [6]. Typically, the subject reports perceiving the two images alternating in periods of dominance. There are two main types of mathematical models for rivalry (Laing et al. [8]). In the first type, rivalry is treated as a time periodic state (perhaps with added noise), and in the second the oscillation is obtained by noise driven jumping between stable equilibria in a bistable system (Moreno-Bote et al. [9]).

        The simplest deterministic version of the first type, studied by many authors including [1, 1018], assumes that there are two units a and b corresponding to the two percepts with a system of differential equations of the form
        X ˙ a = F ( X a , X b ) X ˙ b = F ( X b , X a ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ1_HTML.gif
        (1)
        where the vector X a http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq1_HTML.gif consists of the state variables of unit a and the vector X b http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq2_HTML.gif consists of the state variables of unit b. The equations in (1) are those associated with the two-node network in Fig. 2. It is further assumed that one of the variables x E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq3_HTML.gif is an activity variable and that x a E > x b E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq4_HTML.gif implies that percept a is dominant. Similarly, percept b is dominant if x b E > x a E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq5_HTML.gif. In these models equilibria where X a X b http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq6_HTML.gif are winner-take-all states that correspond to one percept being dominant.
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig2_HTML.jpg
        Fig. 2

        Two-node architecture modeling two units

        States where X a = X b http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq7_HTML.gif are called fusion states. Fusion states are typically interpreted as states where a subject perceives both of the images superimposed [1820]. One might wonder why fusion states would be of interest in mathematical models, since it seems unlikely that the two values X a http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq1_HTML.gif and X b http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq2_HTML.gif would be equal. However, because of the symmetry in model equations such as (1), the subspace X a = X b http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq7_HTML.gif is flow-invariant, and fusion equilibria are structurally stable.

        Periodic solutions representing rivalry are most easily found in model equations (1) by using symmetry-breaking Hopf bifurcation from a fusion state. Note that the symmetry in (1) is given by permuting the two units. In such systems, there are two types of Hopf bifurcation: symmetry-preserving and symmetry-breaking. The two types are distinguished by which subspace
        V + = { ( X a , X b ) : X b = X a ) } or V = { ( X a , X b ) : X b = X a ) } http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equa_HTML.gif

        contains the critical eigenvectors at Hopf bifurcation. Symmetry implies that generically the critical eigenvectors are either in one subspace or the other [5]. Symmetry-preserving Hopf bifurcations (with critical eigenvectors in V + http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq8_HTML.gif) lead to periodic solutions satisfying X b ( t ) = X a ( t ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq9_HTML.gif, that is, to oscillation of fusion states. These states are perhaps uninteresting from the point of view of rivalry. Symmetry-breaking Hopf bifurcations (with critical eigenvectors in V http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq10_HTML.gif) lead to periodic solutions satisfying X b ( t ) = X a ( t + T 2 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq11_HTML.gif, where T is the period. Such solutions lead to periodic alternation between percepts a and b; that is, to rivalrous solutions.

        Kovács et al. [2] published an influential paper demonstrating that subjects can perceive alternations between coherent images even when the components of those images are scrambled and distributed between the two eyes (Lee and Blake [21]). The unscrambling of component pieces to obtain a coherent percept, termed interocular grouping, had been documented previously (Diaz-Coneja [22] and Alais et al. [23]), and has since been reproduced using a variety of rivalry stimuli (Papathomas et al. [24]). Of the four rivalry experiments described in [2], only the first can be understood by the simple two-node network in Fig. 2. We will show that the other three experiments can be modeled using a variant of Wilson networks for generalized rivalry. In their first experiment, subjects are presented the monkey and text images in Fig. 3(a)) and they report rivalry between the two images. In their second experiment, subjects are presented the scrambled images combining parts of the monkey’s face and parts of the written text (see Fig. 3(b)). The subjects report that, in addition to the expected rivalry between the original scrambled images, for part of the time they perceive alternations between unscrambled images of monkey only and text only such as those in Fig. 3(a). We show that the surprising outcome of this experiment is not surprising when formulated as a simple Wilson network.
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig3_HTML.jpg
        Fig. 3

        From Kovács et al. [2] ©(1996) National Academy of Sciences, USA. a Learned images in monkey-text rivalry experiment. b Learned images in scrambled monkey-text experiment

        Kovács et al. [2] also discuss two colored dot rivalry experiments that are analogous to the conventional and scrambled monkey-text experiments. In the conventional colored dot experiment, the subjects were shown the single-color images in Fig. 4(a). Besides reporting rivalry between the two single-color figures, the subjects unexpectedly report images with dots of scrambled colors, such as those in Fig. 4(b). The corresponding result for the conventional monkey-text experiment seems highly unlikely.
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig4_HTML.jpg

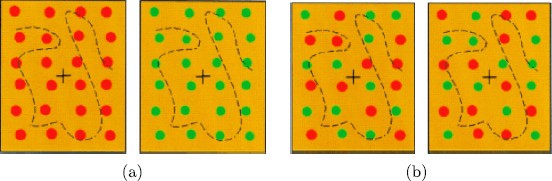

        Fig. 4

        From Kovács et al. [2] ©(1996) National Academy of Sciences, USA. a Learned images in conventional colored dot experiment. b Learned images in scrambled colored dot experiment

        In the scrambled colored dot experiment, [2] presented the subjects with the images in Fig. 4(b). Given the results of the scrambled monkey-text experiment, it is not surprising that subjects reported rivalry between these two scrambled color images and also rivalry between single color images such as shown in Fig. 4(a). However, the analogy of the scrambled colored dot experiment with the scrambled monkey-text experiment is not quite so straightforward, since, as we will see in Sect. 2, the proposed Wilson networks for the two experiments have different symmetries.

        Tong, Meng, and Blake [25] give a simplified description of the colored dot experiments of [2] by using a square array of four dots rather than a rectangular array of 24 dots. Our analysis is based on the simplified 2 × 2 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq12_HTML.gif versions of these experiments, but extends to the 6 × 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq13_HTML.gif case.

        The purpose of this paper is to show that all of the surprising observations made in the four rivalry experiments reported by [2] can be understood by analyzing associated Wilson network models for these experiments. We wish to make the following points.
        1. (1)

          The simplest Wilson model for the conventional monkey-text experiment is the standard two-node rivalry model in Fig. 2 and leads only to rivalry between the whole monkey and the whole text images.


        2. (2)

          The simplest Wilson model for the scrambled monkey-text experiment leads naturally to rivalry solutions between the scrambled images and also between the reconstructed images.


        3. (3)

          The modified Wilson model for the scrambled colored dot experiment also leads naturally to rivalry solutions between both the scrambled and the reconstructed images.


        4. (4)

          The Wilson model for the conventional colored dot experiment leads naturally to rivalry between scrambled images as well as to between the conventional images. This is in contrast to the conventional monkey-text experiment.



        We will see that our analysis also leads to possible additional rivalry states in the colored dot experiments and these states may be thought of as predictions made by our approach.

        The remainder of the paper is organized as follows. We describe Wilson networks in Sect. 2. Our discussion differs from [1] in two important ways. First, we observe that patterns exist in rivalrous solutions for the Wilson networks that are not learned patterns. We call these additional patterns derived; the derived patterns are the ones that correspond to the unexpected results in the Kovács et al. experiments. Second, we introduce an additional type of coupling, lateral coupling, based on models of hypercolumns in the primary visual cortex literature (Bressloff et al. [26]).

        Deciding on the exact form of a Wilson network model for a given experiment is not at this stage algorithmic. Moreover, there are many choices for the exact form of the network equations once the network is fixed. If we take the strict form of the Wilson models (where all nodes, all excitatory couplings, and all inhibitory couplings are identical) and we assume that the associated differential equations are highly idealized rate models (as Wilson does), then the derived patterns in the monkey-text experiment are always unstable. However, stability is a model-dependent property of solutions and simple changes to the network or to the model equations can lead to stable derived patterns.

        There are many ways to modify Wilson networks to address the stability issue and we have chosen one here, namely, we have added lateral coupling to the network. Lateral coupling will also enable us to distinguish the Wilson network models for the two colored dot experiments by a change in network symmetry. The most important message in this paper is the observation that Wilson networks have derived patterns that can be classified using methods from the theory of symmetry-breaking Hopf bifurcations and that these derived patterns appear to correspond to the surprising perceived states found in psychophysics experiments. More discussion is needed to arrive at an algorithmic description of which (modified) Wilson network to use when modeling a given experiment.

        Section 3 gives a brief description of equivariant Hopf bifurcation (see Golubitsky et al. [5]) and shows how to find periodic solutions in Wilson networks modeling the four rivalry experiments that correspond to the rivalries reported in these experiments. Our Hopf bifurcation analysis of the colored dot experiments is based on the four-dot version in [25] and on Hopf bifurcation in the presence of S 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq14_HTML.gif symmetry (analyzed in Stewart [27]) and of D 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq15_HTML.gif symmetry (as in Golubitsky et al. [5]). Note that S 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq14_HTML.gif is the group of permutations on four letters and D 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq15_HTML.gif is the symmetry group of a square.

        Section 4 summarizes the calculations needed to compute stability for rivalrous solutions between both learned and derived patterns in the scrambled monkey-text networks. In this section, we use standard rate models to compute stability and to illustrate the effect of having lateral coupling.

        We end this Introduction by emphasizing that our approach is mainly a model independent one advocated in Golubitsky and Stewart [4]. We use network structure and symmetry to create a menu of possible rivalrous solutions, rather than explicitly finding these solutions in a given differential equations model, such as is typically done in the literature [1, 10, 11, 28]. This menu is model independent. Stability, on the other hand, is model dependent. Our discussion of stability in Sect. 4 does rely on the choice of specific model equations; here we use the rate models introduced by others.

        2 Networks

        Wilson networks [1] are assumed to have learned several patterns, and rivalry is identified with time-periodic states that have periods of dominance of different patterns. Here, we show that these networks can also support derived patterns in addition to learned patterns.

        A pattern is defined by the choice of levels of a set of attributes. Specifically, Wilson networks consist of a rectangular set of nodes, arranged in columns, and two types of coupling. The columns represent attributes of an object and the rows represent possible levels of each attribute. There are reciprocal inhibitory connections between all nodes in each column. See Fig. 5(a). In the Wilson network a pattern is a choice of a single level in each column. If the network has learned a particular pattern, then there are reciprocal excitatory connections between all nodes in the pattern. See Fig. 5(b). A Wilson network can learn many patterns. When it does, there are reciprocal excitatory connections between nodes in each pattern. In our discussion of rivalry, we assume that the images shown to each eye are the two learned patterns.
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig5_HTML.jpg
        Fig. 5

        Architecture for a Wilson network. a Inhibitory connections between nodes in an attribute column. b Excitatory connections in a learned pattern. c Excitatory lateral connections

        Before discussing networks for the rivalry experiments in [2], we consider a variant of Wilson networks that introduces a third type of coupling. This coupling is inspired by the hypercolumn structure of the primary visual cortex (V1). Neurons in V1 are known to be sensitive to orientations of line segments located in small regions of the visual field. Moreover, V1 consists of hypercolumns, which are small regions of V1 that correspond to specific regions of the visual field. Optical imaging of macaque V1 suggests that in each hypercolumn there are neurons that are sensitive to each orientation, and that neurons within a hypercolumn are all-to-all coupled (Blasdel [29]). This coupling is usually assumed to be inhibitory. Thus, when considering V1, the columns in the Wilson networks correspond to hypercolumns where the attributes are the direction of a line field at a specified area in the visual field. However, V1 imaging also indicates a second kind of coupling, called lateral coupling that connects neurons in neighboring hypercolumns [26, 29]. Moreover, the neurons that are most strongly laterally coupled are those that have the same orientation sensitivity [26, 30], albeit at different points in the visual field. Finally, lateral coupling is usually taken to be excitatory.

        With the structure of V1 as inspiration, we define an excitatory lateral coupling in the Wilson networks by connecting those nodes in different columns that correspond to the same level. See Fig. 5(c).

        The scrambled monkey-text experiment can be modeled by a two-level, two-attribute Wilson network with two learned patterns. To specify the network, we conceptualize the Kovács images in Fig. 3(b) as rectangles divided into two regions: one indicated by white and the other by blue in Fig. 6(a). The first attribute in the network corresponds to the portion of a rectangular image in the white region and the second attribute corresponds to the portion of that rectangular image in the blue region. In the Kovács experiment, the possible levels of each attribute are the portion of the monkey image in the associated region and the portion of the text image in that region.
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig6_HTML.jpg
        Fig. 6

        a Distinct areas in scrambled monkey-text experiment. b Schematic two-attribute two-pattern Wilson network for scrambled monkey-text experiment with reciprocal inhibition in attribute columns and reciprocal excitation in learned patterns. c Wilson network with reciprocal lateral excitation

        This network has four nodes, where X i j http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq16_HTML.gif represents level i of attribute j as shown in Fig. 6(b). More specifically, X 11 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq17_HTML.gif represents monkey in the white region in Fig. 6(a) and X 21 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq18_HTML.gif represents text in the white region. Similarly, X 12 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq19_HTML.gif represents monkey in the blue region and X 22 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq20_HTML.gif represents text in the blue region. Thus, there are reciprocal inhibitory connections between nodes X 11 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq17_HTML.gif and X 21 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq18_HTML.gif and between X 12 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq19_HTML.gif and X 22 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq20_HTML.gif. There are also reciprocal excitatory connections between X 11 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq17_HTML.gif and X 22 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq20_HTML.gif and between X 21 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq18_HTML.gif and X 12 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq19_HTML.gif representing the two learned patterns. In this network, the state { x 11 E > x 21 E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq21_HTML.gif and x 22 E > x 12 E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq22_HTML.gif} corresponds to the scrambled image in Fig. 3(b)(left), whereas the state { x 21 E > x 11 E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq23_HTML.gif and x 12 E > x 22 E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq24_HTML.gif} corresponds to the scrambled image in Fig. 3(b)(right). Importantly, the network also supports two derived pattern states: { x 11 E > x 21 E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq21_HTML.gif and x 12 E > x 22 E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq24_HTML.gif}, which corresponds to the monkey only image in Fig. 3(a)(left), and { x 21 E > x 11 E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq23_HTML.gif and x 22 E > x 12 E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq22_HTML.gif}, which corresponds to the text only image in Fig. 3(a)(right).

        Note that lateral coupling changes the network in Fig. 6(b) to the one in Fig. 6(c). Simulations of the equations associated with the network in Fig. 6(c) show stable rivalrous solutions between both learned and derived patterns (see Fig. 7). These simulations use the standard rate equations (11) introduced in Sect. 4.
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig7_HTML.jpg
        Fig. 7

        Simulations of network in Fig. 6(c) showing stable rivalry for equations in (11), where G ( z ) = 0.8 1 + e 7.2 ( z 0.9 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq25_HTML.gif, I = 2 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq26_HTML.gif, w = 0.25 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq27_HTML.gif, β = 1.5 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq28_HTML.gif, g = 1 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq29_HTML.gif, ε = 0.6667 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq30_HTML.gif. In a, δ = 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq31_HTML.gif and in b δ = 0.5 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq32_HTML.gif, where δ is the strength of the lateral coupling

        The symmetries of the networks in Fig. 6(b) and 6(c) are the same. Hence, for this experiment, the addition of lateral coupling does not change the expected types of periodic solutions that can be obtained through symmetry-breaking Hopf bifurcation. However, lateral coupling does change the symmetry of the Wilson network (and hence the expected types of solutions) corresponding to the scrambled colored dot experiment as shown in Fig. 9.

        Tong et al. [25] suggest a simplified version of the colored dot experiments in [2], where each eye is presented with a square symmetric pattern of four dots. So, in the Tong version of the conventional colored dot experiment, one learned pattern has four red dots and the other has four green dots, as shown in Fig. 8(a). To our knowledge, this proposed rivalry experiment has not been performed.
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig8_HTML.jpg
        Fig. 8

        a Images in simplification of the conventional colored dot experiment in <abbrgrp>225</abbrgrp>. b Network with two learned patterns corresponding to the simplified experiment; symmetry group is Γ = S 4 × Z 2 ( ρ ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq33_HTML.gif. UL = upper left http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq34_HTML.gif, LL = lower left http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq35_HTML.gif, LR = lower right http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq36_HTML.gif, UR = upper right http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq37_HTML.gif

        We model this experiment by a Wilson network consisting of four attribute columns, where each attribute refers to the position of one of the dots (upper left, lower left, lower right, upper right) and has two levels (red and green). The eight-node Wilson network with two learned patterns is shown in Fig. 8(b). Adding lateral coupling to this network does not change the symmetry since the lateral coupling and the learned pattern coupling are coincident in this model.

        The Wilson network with lateral coupling for the scrambled colored dot experiment is shown in Fig. 9(b). This network is presented so that the learned pattern couplings are in horizontal planes; that is, the red and green levels are inverted in the LL and UR attribute columns. Note that if lateral coupling were not included then this network would be isomorphic to Fig. 8(b), and hence have the same symmetry groups. It would follow that we would predict the same solution types for the two colored dot experiments, which is not what is observed.
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig9_HTML.jpg
        Fig. 9

        a Images in simplification of the scrambled colored dot experiment in <abbrgrp>225</abbrgrp>. b Network with two learned patterns and lateral coupling corresponding to the simplified experiment; symmetry group is Γ = D 4 × Z 2 ( ρ ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq38_HTML.gif

        3 Symmetry and Hopf Bifurcation

        Wilson networks have symmetry and these symmetries dictate the kinds of periodic solutions that can be obtained through Hopf bifurcation from a fusion state. The classification of periodic solutions proceeds as follows. See [5].
        1. (1)

          Determine the symmetry group Γ of the network and how Γ acts on phase space.


        2. (2)

          Determine the irreducible representations of this action of Γ. (Recall that a representation V is an invariant subspace of the action of Γ; V is irreducible if the only invariant subspaces are the trivial subspace {0} and V itself.)


        3. (3)

          Classify the periodic solutions for each distinct irreducible representation by their spatiotemporal symmetries.



        Step 1 is straightforward for the networks we consider. Step 2 is most easily determined by computing the isotypic decomposition of Γ. An isotypic component consists of the sum of all isomorphic irreducible representations. In general, step 3 is difficult, but it has been worked out in the literature for most standard group actions. Note that if a symmetry γ Γ http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq39_HTML.gif acts trivially on an isotypic component, then all bifurcating periodic solutions corresponding to this component will be invariant under the symmetry. This remark enables us to identify representations that only lead to oscillating fusion states, which are uninteresting from the rivalry point of view. Specifically, let ρ be the symmetry that transposes the two nodes in each column. A solution that is invariant under ρ will have activity variables equal in each column and, therefore, be fusion states.

        3.1 The Scrambled Monkey-Text Experiment Networks

        The form of equations relevant to the network in Fig. 6(b) is
        X ˙ 11 = F ( X 11 , X 21 , X 22 ) X ˙ 21 = F ( X 21 , X 11 , X 12 ) X ˙ 12 = F ( X 12 , X 22 , X 21 ) X ˙ 22 = F ( X 22 , X 12 , X 11 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ2_HTML.gif
        (2)

        where in F ( X , Y , Z ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq40_HTML.gif, X is the internal state variable of the given node, Y is the node connected to X with inhibitory coupling, and Z is the node connected to X with excitatory learned pattern coupling. Note that for general networks X i j R k http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq41_HTML.gif. However, in the models we use, k = 2 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq42_HTML.gif.

        We claim that two types of non-fusion oscillation can be obtained by Hopf bifurcation from fusion states ( X 11 = X 12 = X 21 = X 22 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq43_HTML.gif). Our argument is based on symmetry and utilizes the theory of Hopf bifurcation in the presence of symmetry [5]. The symmetry group D 2 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq44_HTML.gif of this Wilson network is generated by two symmetries, namely, the symmetry ρ that swaps rows and the symmetry κ that swaps columns. Specifically,
        ρ ( X 11 , X 21 , X 12 , X 22 ) = ( X 21 , X 11 , X 22 , X 12 ) κ ( X 11 , X 21 , X 12 , X 22 ) = ( X 12 , X 22 , X 11 , X 21 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equb_HTML.gif

        An important consequence of symmetry is that at a symmetric equilibrium the Jacobian of a symmetric system of differential equations, such as (2), is block diagonalized by the isotypic decomposition of the symmetry group acting on phase space [5].

        The isotypic decomposition for D 2 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq44_HTML.gif on R 8 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq45_HTML.gif is given by
        R 8 = V + + V + V + V http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ3_HTML.gif
        (3)
        where the V a b http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq46_HTML.gif are defined in (4).
        V + + = { ( X , X , X , X ) } ρ = 1 , κ = 1 fusion V + = { ( X , X , X , X ) } ρ = 1 , κ = 1 fusion V + = { ( X , X , X , X ) } ρ = 1 , κ = 1 derived: unscrambled V = { ( X , X , X , X ) } ρ = 1 , κ = 1 learned: scrambled http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ4_HTML.gif
        (4)

        where X = ( x E , x H ) R 2 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq47_HTML.gif. Note that any point ( X 11 , X 21 , X 12 , X 22 ) R 8 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq48_HTML.gif that is fixed by ρ satisfies X 11 = X 21 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq49_HTML.gif and X 12 = X 22 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq50_HTML.gif. Since the attribute levels of such states are equal, these states are fusion states and are so labeled in (4). It also follows from the theory of Hopf bifurcation with symmetry and from (4) that Eq. (2) have four possible types of Hopf bifurcation from a fusion state X where all X i j http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq16_HTML.gif are equal. One type of bifurcation leads to rivalry between learned patterns, a second type leads to rivalry between derived patterns, and as noted the remaining two types (where ρ fixes all points in the isotypic component) lead to rivalry between fusion states.

        3.2 The Conventional Colored Dot Network

        The Wilson network in Fig. 8(b) has S 4 × Z 2 ( ρ ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq51_HTML.gif symmetry, where S 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq14_HTML.gif is the permutation group of the four attribute columns and Z 2 ( ρ ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq52_HTML.gif interchanges the upper and lower nodes in each column. The rivalry predictions from this network require using the theory of Hopf bifurcation in the presence of S 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq14_HTML.gif symmetry (Stewart [27] and Dias and Rodrigues [31]).

        Equivariant Hopf bifurcation is driven by the irreducible representations of Γ = S 4 × Z 2 ( ρ ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq33_HTML.gif on R 8 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq45_HTML.gif and there are four such distinct irreducible representations. First, recall that S 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq14_HTML.gif decomposes R 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq53_HTML.gif into two (absolutely) irreducible representations
        V 1 = { ( X , X , X , X ) : X R 2 } V 3 = { ( X 1 , X 2 , X 3 , X 4 ) : X j R 2 ; X 1 + X 2 + X 3 + X 4 = 0 } http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equc_HTML.gif
        It follows that the irreducible representations of Γ acting on R 8 = R 4 R 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq54_HTML.gif are
        V 1 + = { ( v , v ) : v V 1 } fusion V 1 = { ( v , v ) : v V 1 } learned: single color V 3 + = { ( v , v ) : v V 3 } fusion V 3 = { ( v , v ) : v V 3 } derived: scrambled colors http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ5_HTML.gif
        (5)

        The decomposition (5) is the analog for the conventional colored dot network of the decomposition (4) for the scrambled monkey-text network. Note that ρ acts trivially in the plus representations and as multiplication by −1 in the minus representations. All solutions bifurcating from a plus representation are invariant under ρ, and hence are fusion states, since invariance under ρ implies that the entries in each attribute column are equal.

        On the other hand, all periodic solutions bifurcating from a minus representation satisfy
        X ( t ) = ( a 0 b 0 c 0 d 0 a 1 / 2 b 1 / 2 c 1 / 2 d 1 / 2 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ6_HTML.gif
        (6)
        We use the notation e θ ( t ) = e ( t + θ T ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq55_HTML.gif where e ( t ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq56_HTML.gif is T-periodic. Hopf bifurcation based on V 1 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq57_HTML.gif leads to solutions of the form of Σ 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq58_HTML.gif in Table 1, that is, to rivalry between the two learned patterns in Fig. 8(a).
        Table 1

        Isotropy subgroups of periodic solutions from S 4 × Z 2 ( ρ ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq51_HTML.gif symmetry. We use the notation e θ ( t ) = e ( t + θ T ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq55_HTML.gif where e ( t ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq56_HTML.gif is T-periodic. Moreover, the frequency of u is three times the frequency of a, v 3 a http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq59_HTML.gif, and the frequency of c is twice the frequency of a

        Σ

        Pattern of oscillation X(t)



        Σ 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq58_HTML.gif

        ( a 0 a 0 a 0 a 0 a 1 / 2 a 1 / 2 a 1 / 2 a 1 / 2 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq60_HTML.gif

        Figure 8(a)

        Σ 1 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq61_HTML.gif

        ( a 0 a 1 / 2 a 1 / 2 a 0 a 1 / 2 a 0 a 0 a 1 / 2 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq62_HTML.gif

        Figures 10(a) or 10(b) or 10(c)

        Σ 2 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq63_HTML.gif

        ( c a 0 a 1 / 2 c c a 1 / 2 a 0 c ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq64_HTML.gif

        Fusion

        Σ 3 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq65_HTML.gif

        ( a 0 a 1 / 4 a 2 / 4 a 3 / 4 a 2 / 4 a 3 / 4 a 0 a 1 / 4 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq66_HTML.gif

        Figure 11

        Σ 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq67_HTML.gif

        ( a 0 a 2 / 6 a 4 / 6 u 0 a 3 / 6 a 5 / 6 a 1 / 6 u 1 / 2 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq68_HTML.gif

        Complicated transitions

        Σ 5 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq69_HTML.gif

        ( a 0 a 0 a 0 v 0 a 1 / 2 a 1 / 2 a 1 / 2 v 1 / 2 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq70_HTML.gif

        Figure 12

        Next, we consider Hopf bifurcation based on V 3 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq71_HTML.gif. This bifurcation is driven by Hopf bifurcation of S 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq14_HTML.gif on V 3 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq72_HTML.gif, which has been analyzed in [27]. (The stability of resulting solutions is discussed on p. 634 in [31].) Up to conjugacy, these authors find five types Σ 1 , , Σ 5 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq73_HTML.gif of periodic solutions whose structures are listed in Table 1. Patterns corresponding to Σ 1 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq61_HTML.gif give rivalry between the derived patterns shown in Fig. 10(a) (note that because of symmetry, Figs. 10(b) and 10(c) are conjugate to Fig. 10(a), and all three patterns coexist). Patterns corresponding to Σ 3 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq65_HTML.gif are those shown in Fig. 11; patterns corresponding to Σ 5 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq69_HTML.gif are those shown in Fig. 12. We have not computed the transition of patterns that are associated with Σ 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq67_HTML.gif solutions.
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig10_HTML.jpg
        Fig. 10

        Predicted percept alternations for proposed conventional colored dot experiment. Rivalry between two red and two green dot patterns: a diagonal; b adjacent top and bottom; c adjacent sides

        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig11_HTML.jpg
        Fig. 11

        Predicted percept alternations for proposed conventional colored dot experiment. Rivalry in a rotating wave

        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig12_HTML.jpg
        Fig. 12

        Predicted percept alternations for proposed conventional colored dot experiment. Rivalry between three dots of one color

        We have focused on the simplified version of the conventional colored dot experiment with a 2 × 2 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq12_HTML.gif grid of dots. However, the bifurcations using a 6 × 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq13_HTML.gif grid of dots, as in the original experiment [2], are completely analogous. Suppose there are n dots. Then there will be n attribute columns with a symmetry group Γ = S n × Z 2 ( ρ ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq74_HTML.gif. The isotypic decomposition is
        V 1 = { ( X , , X ) : X R 2 } V n 1 = { ( X 1 , , X n ) : X j R 2 ; X 1 + + X n = 0 } http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equd_HTML.gif
        It follows that the irreducible representations of Γ acting on R 2 n = R n R n http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq75_HTML.gif are
        V 1 + = { ( v , v ) : v V 1 } fusion V 1 = { ( v , v ) : v V 1 } learned: single color V n 1 + = { ( v , v ) : v V n 1 } fusion V n 1 = { ( v , v ) : v V n 1 } derived: scrambled colors http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ7_HTML.gif
        (7)

        Hence, the bifurcation structure for n dots is analogous to that of 4 dots; there are two types of bifurcation to fusion states ( V n 1 + http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq76_HTML.gif, V 1 + http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq77_HTML.gif), one to rivalry between the learned patterns ( V 1 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq57_HTML.gif), and one to bifurcation to derived patterns ( V n 1 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq78_HTML.gif). The actual solution types depend on n and we will not attempt to interpret the bifurcation results of [27] in the n dot case as we have in the four dot case.

        3.3 The Scrambled Colored Dot Network

        Next, we return to the Kovács scrambled colored dot experiment where the subjects are shown the scrambled colored images in Fig. 4(b). In this case, subjects report perceiving rivalry between the all red dot and all green dot images in Fig. 4(a) for nearly 50 % of the duration of the experiment. This result is difficult to explain with a standard Wilson network. The reason is that when lateral coupling is ignored, this experiment leads to a Wilson network with the same symmetry group as the conventional Kovács dot experiment. It follows that rivalry between the images in Fig. 4(a) is one of several types of possible solutions and it is not clear why this particular solution type should be observed for such a large percentage of the time.

        If, however, we include lateral coupling we arrive at the network in Fig. 9 whose symmetry group is Γ = D 4 × Z 2 ( ρ ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq38_HTML.gif. Differential equations that correspond to this network have the form
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Eque_HTML.gif

        where the overbar indicates terms whose order can be interchanged. The form of (8) emphasizes the fact that there are three different types of coupling: inhibitory, excitatory learned, and excitatory lateral.

        The isotypic decomposition of R 8 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq45_HTML.gif under Γ = D 4 × Z 2 ( ρ ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq38_HTML.gif now has six components, as follows. Let
        W 0 = { ( X , X , X , X ) : X R 2 } W 1 = { ( X , X , X , X ) : X R 2 } W 2 = { ( X 1 , X 2 , X 1 , X 2 ) : X 1 , X 2 R 2 } http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equf_HTML.gif
        It follows that the isotypic components of Γ acting on R 16 = R 8 R 8 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq79_HTML.gif are
        W 0 + = { ( v , v ) : v W 0 } fusion W 1 + = { ( v , v ) : v W 1 } fusion W 2 + = { ( v , v ) : v W 2 } fusion W 0 = { ( v , v ) : v W 0 } learned: scrambled color W 1 = { ( v , v ) : v W 1 } derived: single color W 2 = { ( v , v ) : v W 2 } derived: other scrambled colors http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ8_HTML.gif
        (9)

        As in the previous examples, bifurcation with respect to W j + http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq80_HTML.gif leads to fusion states. Bifurcations with respect to W 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq81_HTML.gif leads to rivalry between the learned patterns and bifurcation with respect to W 1 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq82_HTML.gif leads to rivalry between the single color dots, as desired. Finally, bifurcation with respect to W 2 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq83_HTML.gif leads to scrambled color patterns similar to (but not the same as) those obtained in the S 4 × Z 2 ( ρ ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq51_HTML.gif case. From an abstract point of view, the Wilson network with lateral coupling is a much more satisfactory explanation for the existence of the single color rivalry when scrambled dots are presented than is the Wilson network without lateral coupling.

        Finally, we note that the discussion in this section generalizes to the scrambled dot experiment with a 6 × 4 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq13_HTML.gif grid of colored dots, as long as the number of green dots and the number of red dots in the scrambled learned patterns are equal, as in Fig. 4(b).

        4 Stability in Scrambled Monkey-Text Networks

        The classification of possible solution types, as given in Sect. 3, is model independent. We do not need to know the particular equations in order to complete the classification; we just need to know that the equations are Γ-equivariant. Given a system of equations, we can prove that solutions of the types that we have classified actually exist only by showing that a Hopf bifurcation that corresponds to the appropriate isotypic component actually occurs. See the equivariant Hopf theorem in [5]. We can also determine whether these solutions are stable, which is model dependent; we need to know the equations.

        There are three steps in the calculation of stability. First, we need to determine that there is a fusion equilibrium. Second, we must show that the Hopf bifurcations themselves can be stable. That is, we must find Hopf bifurcation points where the critical eigenvectors of the Jacobian J at the fusion equilibium correspond to the given isotypic component and all other eigenvalues of J have negative real part. Third, we need to calculate higher order terms in a center manifold reduction to check that the bifurcating solutions are actually stable. Alternatively, we can just simulate the equations for parameter values near a stable Hopf point and see whether we can detect stable solutions. Indeed, this was our approach for the scrambled monkey-text model in Sect. 2.

        The principal conclusion is that derived pattern rivalry (between unscrambled images) can be stable in this model only if the strength of the lateral coupling is greater than the strength of the learned pattern coupling (see Proposition 3). Note that this cannot happen if lateral coupling is absent. We also show that learned pattern rivalry (between scrambled images) can only be stable when the strength of the learned pattern coupling is greater than the strength of the lateral coupling (see Proposition 2).

        4.1 Equations for the Scrambled Monkey-Text Network

        There is some leeway in choosing differential equations associated to a given network. In this context, we follow Wilson and others and assume that the nodes are neurons or groups of neurons and that the important information is captured by the firing rate of the neurons. Thus, we follow [1] and assume that in these models each node ( i , j ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq84_HTML.gif in the network has a state space x i j = ( x i j E , x i j H ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq85_HTML.gif, where x i j E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq86_HTML.gif is an activity variable (representing firing rate) and x i j H http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq87_HTML.gif is a fatigue variable. Coupling between nodes is given through a gain function G http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq88_HTML.gif. Specifically,
        ε x ˙ i j E = x i j E + G ( I i j + w p q i j x p q E + δ u v i j x u v E β r j i j x r j E g x i j H ) x ˙ i j H = x i j E x i j H http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ9_HTML.gif
        (10)

        where → indicates an excitatory learned pattern connection, ↦ indicates an excitatory lateral connection, and ⇒ indicates an inhibitory connection. Similar rate models are often used in the rivalry literature (Wilson et al. [32, 33]). The parameters are: reciprocal learned pattern excitation between nodes w > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq89_HTML.gif, reciprocal lateral excitation δ 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq90_HTML.gif, reciprocal inhibition between nodes β > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq91_HTML.gif, the external signal strength I i j 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq92_HTML.gif to nodes, the strength of reduction of the activity variable by the fatigue variable g > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq93_HTML.gif, and the ratio of time scales ε < 1 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq94_HTML.gif on which E http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq95_HTML.gif and H http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq96_HTML.gif evolve. Note that δ = 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq97_HTML.gif for the simulations in [1]. The gain function G http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq88_HTML.gif is usually assumed to be nonnegative and nondecreasing, and is often a sigmoid.

        In this case, we assume all I i j = I http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq98_HTML.gif and for the network in Fig. 6(c) the system (10) reduces to:
        ε x ˙ 11 E = x 11 E + G ( I + w x 22 E + δ x 12 E β x 21 E g x 11 H ) x ˙ 11 H = x 11 E x 11 H ε x ˙ 21 E = x 21 E + G ( I + w x 12 E + δ x 22 E β x 11 E g x 21 H ) x ˙ 21 H = x 21 E x 21 H ε x ˙ 12 E = x 12 E + G ( I + w x 21 E + δ x 11 E β x 22 E g x 12 H ) x ˙ 12 H = x 12 E x 12 H ε x ˙ 22 E = x 22 E + G ( I + w x 11 E + δ x 21 E β x 12 E g x 22 H ) x ˙ 22 H = x 22 E x 22 H http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ10_HTML.gif
        (11)

        As we will see, there is an advantage of lateral coupling in the four-node model for the scrambled monkey-text experiment. The additional coupling allows the rivalrous solutions with respect to the derived patterns to be asymptotically stable at bifurcation; these solutions are not stable if lateral coupling is excluded.

        4.2 Calculation of Fusion Equilibria

        The equations for a fusion equilibrium for (11) reduces to
        x = G ( I + ( w + δ β g ) x ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ11_HTML.gif
        (12)
        where all x i j E = x i j H = x http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq99_HTML.gif. Solutions of this equation have been studied by [10, 11, 34]. It is convenient to define
        ρ = w + δ β g http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equg_HTML.gif
        Then (12) can be rephrased as
        G ( I + ρ x ) x = 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ12_HTML.gif
        (13)

        Diekman et al. (Lemma 3.1 in [34]) state that for every ρ there is an I > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq100_HTML.gif and x > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq101_HTML.gif that satisfies (13). Thus, we can assume there is a fusion state for any choice of w, δ, β, g, ε. We are particularly interested in the case when ρ < 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq102_HTML.gif.

        Lemma 1 Fix w , δ , β , g , I , G 0 > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq103_HTML.gif. Fix x 0 > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq104_HTML.gif so that the ( I x 0 ) ρ > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq105_HTML.gif. Then there exists a gain function G ( z ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq106_HTML.gif satisfying
        G ( x 0 ) = 1 ρ ( x 0 I ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ13_HTML.gif
        (14)

        and G ( z 0 ) = G 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq107_HTML.gif.

        It follows from Lemma 1 that x 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq108_HTML.gif is a fusion equilibrium and that we can choose G ( x 0 ) > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq109_HTML.gif arbitrarily.

        Proof of Lemma 1 The sigmoidal function
        G ( x ) = 2 a 1 + e ( 2 b / a ) ( x x 0 ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equh_HTML.gif

        satisfies G ( x 0 ) = a http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq110_HTML.gif and G ( x 0 ) = b http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq111_HTML.gif. Set b = G 0 > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq112_HTML.gif and a equal to the RHS of (14), which is also positive since ρ and x 0 I http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq113_HTML.gif have the same sign. □

        4.3 Calculation of Critical Eigenvalues

        J + + = ( 1 + ( w + δ β ) G g G ε ε ) J + = ( 1 + ( w δ β ) G g G ε ε ) J + = ( 1 + ( w + δ + β ) G g G ε ε ) J = ( 1 + ( w δ + β ) G g G ε ε ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ14_HTML.gif
        (15)
        det ( J + + ) = ε ( 1 + ( g + β w δ ) G ) det ( J + ) = ε ( 1 + ( g + β + w + δ ) G ) det ( J + ) = ε ( 1 + ( g β + w δ ) G ) det ( J ) = ε ( 1 + ( g β w + δ ) G ) http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ15_HTML.gif
        (16)
        tr ( J + + ) = 1 + ( w + δ β ) G ε tr ( J + ) = 1 + ( w δ β ) G ε tr ( J + ) = 1 + ( w + δ + β ) G ε tr ( J ) = 1 + ( w δ + β ) G ε http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ16_HTML.gif
        (17)

        For Hopf bifurcation to exist, we need one trace to be zero and the corresponding determinant to be positive. For that Hopf bifurcation to be stable, we require all four determinants to be positive and the remaining three traces to be negative.

        4.4 Stability of Learned Pattern Rivalry

        Proposition 2 To have stable Hopf bifurcation to learned pattern rivalry in (11), it is necessary that
        β > δ w > δ http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ17_HTML.gif
        (18)
        Sufficient conditions for stable Hopf bifurcation to learned pattern rivalry are given by (18) and
        g > w δ + β G > 1 w δ + β http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ18_HTML.gif
        (19)
        Proof For Hopf bifurcation to learned pattern rivalry to exist, we need tr ( J ) = 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq114_HTML.gif, that is,
        ε = 1 + ( w δ + β ) G http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equi_HTML.gif
        It follows from (19) that ε > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq115_HTML.gif. For this bifurcation to be stable we also need the other three traces to be negative. Thus, substituting for ε in (17), we obtain the necessary conditions
        tr ( J + + ) < 0 β > δ tr ( J + ) < 0 β + w > 0 tr ( J + ) < 0 w > δ http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ19_HTML.gif
        (20)

        Note that the necessary conditions (18) follow from directly from (20) and the second condition in (20) follows from the first and third.

        To prove the sufficiency part of the lemma, we need to verify that the determinants are all positive. This follows from (16) if
        g + β w δ > 0 g + β + w + δ > 0 g β + w δ > 0 g β w + δ > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ20_HTML.gif
        (21)

        Note that the second inequality is always satisfied and, assuming (18), the first and third follow from the fourth. Finally, the fourth inequality follows from (19). □

        Note that Hopf bifurcation to stable learned patterns is possible when the lateral coupling is nonexistent; that is, δ = 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq31_HTML.gif.

        4.5 Stability of Derived Pattern Rivalry

        Proposition 3 To have stable Hopf bifurcation to learned pattern rivalry in (11), it is necessary that
        β > w δ > w http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ21_HTML.gif
        (22)
        Sufficient conditions for stable Hopf bifurcation to learned pattern rivalry are given by (22) and
        g > δ w + β G > 1 δ w + β http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ22_HTML.gif
        (23)
        Proof For Hopf bifurcation to derived pattern rivalry, we need tr ( J + ) = 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq116_HTML.gif, that is,
        ε = 1 + ( w + δ + β ) G http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equj_HTML.gif
        It follows from (23) that ε > 0 http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq115_HTML.gif. For this bifurcation to be stable, we need the other three traces to be negative. On substituting for ε in (17), we obtain the necessary conditions:
        tr ( J + + ) < 0 β > w tr ( J + ) < 0 β + δ > 0 tr ( J ) < 0 δ > w http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equ23_HTML.gif
        (24)

        Note that the necessary conditions (22) follow directly from (24) and the second condition in (24) follows from the first and third.

        To prove the sufficiency part of the lemma, we need to verify that the determinants are all positive. This follows from (16) if the four conditions (21) are satisfied. Note that the second inequality is always satisfied and, assuming (22), the first and fourth follow from the third. Finally, the third inequality follows from (23). □

        Note that Hopf bifurcation to stable derived patterns is possible only when the strength of the lateral coupling is larger than the strength of the learned pattern coupling; that is, δ > w http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq117_HTML.gif.

        5 Discussion

        We have shown that the surprising results in three binocular rivalry experiments described by Kovács et al. [2] can be understood through the use of Wilson-type networks [1] and equivariant Hopf bifurcation theory [5], as interpreted in coupled cell systems [3].

        We would like to put our results in a broader context. We showed in Diekman et al. [34] that rivalry between two patterns in Wilson networks collapses to the two-node network in Fig. 2 when the patterns have no attribute levels in common. This reduction uses the notion of a quotient network discussed in [3] and proceeds by identifying equivalent levels in different attribute columns. Let S http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq118_HTML.gif denote the subspace obtained in this way [34]. This subspace is flow-invariant for the dynamics; moreover, if one uses the rate models (10) (without lateral coupling), then there are regions in parameter space where the dynamics are attracting to S http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq118_HTML.gif. We mention this for two reasons. First, bifurcation in directions transverse to S http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq118_HTML.gif yields the derived patterns discussed in this paper. For such bifurcations to occur, S http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq118_HTML.gif cannot be attracting and this occurs when lateral coupling is present. Second, one can think of the reduction to S http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq118_HTML.gif (that is, reduction to the two-node network) as aggregating the information contained in several different attributes into one combined attribute. We believe this is a more general phenomenon with different levels of pattern complexity, as we now describe.

        To construct a Wilson network for a given experiment, we must assume which attributes and which levels appropriately define a pattern. For example, in the simplified colored dot experiments, we assume that the attributes are the colors of the dots at four geometric locations. On the other hand, in the scrambled monkey-text experiment, we assume that the attributes are the kind of picture (monkey or text) in two regions of the image rectangle (the blue and the white regions in Fig. 6(a)). One can ask whether these attributes are the reasonable ones to describe patterns in these experiments.

        For example, suppose we assume that the attributes in the scrambled monkey-text experiment are the type of image in the six regions labeled A–F in Fig. 13(a). Then we are led to the 12-node network in Fig. 13(b) as a model for this experiment. Such a decomposition is closer in spirit to the geometric decomposition in the colored dot experiments. It is reasonable to ask whether there is a relationship between the networks in Figs. 6(c) and 13(b), and there is. The larger network in Fig. 13(b) has a quotient network on the flow-invariant subspace
        Fix ( ( ACE ) ( BDF ) ) = { X i A = X i C = X i E  and  X i B = X i D = X i F  for  i = 1 , 2 } http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Equk_HTML.gif
        (see [3]) that is isomorphic to the smaller network in Fig. 6(c). Hence, the solution types that we discussed previously for the smaller network also appear in the larger network (which corresponds to a more refined geometry). In principle, other solution types can appear in the larger network, but there were no indications of such solutions in the scrambled monkey-text experiment. We believe that there is a general relationship between refined patterns (the addition of extra attribute columns in Wilson networks) and the quotient networks from coupled cell theory [3].
        http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_Fig13_HTML.jpg
        Fig. 13

        a Regions A–F in image rectangle of scrambled monkey-text experiment. b Network with six attribute columns corresponding to monkey or text image in each region. All inhibitory couplings are shown, but only “nearest neighbor” learned and lateral couplings are shown

        There are two prevalent views about what leads to alternations during binocular rivalry: eye-based theories postulate that the two eyes compete for dominance, while stimulus-based theories postulate that it is coherent perceptual representations that are in competition (Papathomas et al. [24]). Kovács et al. [2] interpreted their results on interocular grouping (IOG) as evidence against eye-based theories of rivalry.

        Lee and Blake [21] reexamine IOG during rivalry, and argue that, whereas IOG rules out models of rivalry in which one eye or the other is completely dominant at any given moment, IOG can be explained by simultaneous dominance of local eye-based regions distributed between the eyes. To demonstrate this, they performed a series of experiments using the Kovács monkey-text images and an eye-swap technique that exchanges rival images immediately after one becomes dominant (Blake et al. [35]). In their analysis, [21] consider a decomposition of the monkey-text images into six regions that is very similar to the decomposition shown in Fig. 13(a). Our mathematical construction, based on Wilson networks and an abstract notion of quotient networks, is not meant to represent V1 or any specific brain area. However, our results support the conclusion of [21] that global IOG (derived patterns) can be achieved by simultaneous local eye dominance.

        We end by noting that it should be possible to test our predictions of likely percepts by performing the simplified colored dot experiments. We also note that illusions are part of this network theory and they themselves can lead to interesting kinds of perceptual alternations. This topic, as well as symmetry-breaking steady-state bifurcations that lead to various types of winner-take-all states, will be discussed in future work.

        Declarations

        Acknowledgements

        The authors thank Randolph Blake, Tyler McMillen, Jon Rubin, Ian Stewart, and Hugh Wilson for helpful discussions. YW thanks the Computational and Applied Mathematics Department of Rice University for its support. This research was supported in part by NSF Grant DMS-1008412 to MG and NSF Grant DMS-0931642 to the Mathematical Biosciences Institute.

        Authors’ Affiliations

        (1)
        Mathematical Biosciences Institute, The Ohio State University
        (2)
        Department of Mathematics, Texas Southern University

        References

        1. Wilson HR: Requirements for conscious visual processing. In Cortical Mechanisms of Vision. Edited by: Jenkins M, Harris L. Cambridge University Press, Cambridge; 2009:399–417.
        2. Kovács I, Papathomas TV, Yang M, Fehér A: When the brain changes its mind: interocular grouping during binocular rivalry. Proc Natl Acad Sci USA 1996, 93: 15508–15511. 10.1073/pnas.93.26.15508View Article
        3. Golubitsky M, Stewart I: Nonlinear dynamics of networks: the groupoid formalism. Bull Am Math Soc 2006, 43: 305–364. 10.1090/S0273-0979-06-01108-6MathSciNetView ArticleMATH
        4. Golubitsky M, Stewart I: The Symmetry Perspective: From Equilibrium to Chaos in Phase Space and Physical Space. Birkhäuser, Basel; 2002.View Article
        5. Golubitsky M, Stewart I, Schaeffer DG Applied Mathematical Sciences 69. In Singularities and Groups in Bifurcation Theory: Volume II. Springer, New York; 1988.View Article
        6. Blake R, Logothetis NK: Visual competition. Nat Rev, Neurosci 2002, 3: 1–11.View Article
        7. Your amazing brain [http://​www.​youramazingbrain​.​org/​supersenses/​necker.​htm]
        8. Laing CR, Frewen T, Kevrekidis IG: Reduced models for binocular rivalry. J Comput Neurosci 2010, 28: 459–476. 10.1007/s10827-010-0227-6MathSciNetView Article
        9. Moreno-Bote R, Rinzel J, Rubin N: Noise-induced alternations in an attractor network model of perceptual bistability. J Neurophysiol 2007, 98: 1125–1139. 10.1152/jn.00116.2007View Article
        10. Curtu R: Singular Hopf bifurcations and mixed-mode oscillations in a two-cell inhibitory neural network. Physica D 2010, 239: 504–514. 10.1016/j.physd.2009.12.010MathSciNetView ArticleMATH
        11. Curtu R, Shpiro A, Rubin N, Rinzel J: Mechanisms for frequency control in neuronal competition models. SIAM J Appl Dyn Syst 2008, 7: 609–649. 10.1137/070705842MathSciNetView ArticleMATH
        12. Kalarickal GJ, Marshall JA: Neural model of temporal and stochastic properties of binocular rivalry. Neurocomputing 2000, 32: 843–853.View Article
        13. Laing C, Chow C: A spiking neuron model for binocular rivalry. J Comput Neurosci 2002, 12: 39–53. 10.1023/A:1014942129705View Article
        14. Lehky SR: An astable multivibrator model of binocular rivalry. Perception 1988, 17: 215–228. 10.1068/p170215View Article
        15. Matsuoka K: The dynamic model of binocular rivalry. Biol Cybern 1984, 49: 201–208. 10.1007/BF00334466View ArticleMATH
        16. Mueller TJ: A physiological model of binocular rivalry. Vis Neurosci 1990, 4: 63–73. 10.1017/S0952523800002777View Article
        17. Noest AJ, van Ee R, Nijs MM, van Wezel RJA: Percept-choice sequences driven by interrupted ambiguous stimuli: a low-level neural model. J Vis 2007., 7(8): Article ID 10 Article ID 10
        18. Seely J, Chow CC: The role of mutual inhibition in binocular rivalry. J Neurophysiol 2011, 106: 2136–2150. 10.1152/jn.00228.2011View Article
        19. Liu L, Tyler CW, Schor CM: Failure of rivalry at low contrast: evidence of a suprathreshold binocular summation process. Vis Res 1992, 32: 1471–1479. 10.1016/0042-6989(92)90203-UView Article
        20. Shpiro A, Curtu R, Rinzel J, Rubin N: Dynamical characteristics common to neuronal competition models. J Neurophysiol 2007, 97: 462–473. 10.1152/jn.00604.2006View Article
        21. Lee S, Blake R: A fresh look at interocular grouping during binocular rivalry. Vis Res 2004, 44: 983–991. 10.1016/j.visres.2003.12.007View Article
        22. Diaz-Caneja E: Sur l’alternance binoculaire. Ann Ocul 1928, October:721–731. Diaz-Caneja E: Sur l’alternance binoculaire. Ann Ocul 1928, October:721-731.
        23. Alais D, O’Shea RP, Mesana-Alais C, Wilson IG: On binocular alternation. Perception 2000, 29: 1437–1445. 10.1068/p3017View Article
        24. Papathomas TV, Kovács I, Conway T: Interocular grouping in binocular rivalry: basic attributes and combinations. In Binocular Rivalry. Edited by: Alais D, Blake R. MIT Press, Cambridge; 2005:155–168.
        25. Tong F, Meng M, Blake R: Neural bases of binocular rivalry. Trends Cogn Sci 2006, 10: 502–511. 10.1016/j.tics.2006.09.003View Article
        26. Bressloff PC, Cowan JD, Golubitsky M, Thomas PJ, Wiener MC: Geometric visual hallucinations, Euclidean symmetry, and the functional architecture of striate cortex. Philos Trans R Soc Lond B, Biol Sci 2001, 356: 299–330. 10.1098/rstb.2000.0769View Article
        27. Stewart I: Symmetry methods in collisionless many-body problems. J Nonlinear Sci 1996, 6: 543–563. 10.1007/BF02434056MathSciNetView ArticleMATH
        28. Wilson H: Minimal physiological conditions for binocular rivalry and rivalry memory. Vis Res 2007, 47: 2741–2750. 10.1016/j.visres.2007.07.007View Article
        29. Blasdel GG: Orientation selectivity, preference, and continuity in monkey striate cortex. J Neurosci 1992, 12: 3139–3161.
        30. Golubitsky M, Shiau L-J, Torok A: Bifurcation on the visual cortex with weakly anisotropic lateral coupling. SIAM J Appl Dyn Syst 2003, 2: 97–143. 10.1137/S1111111102409882MathSciNetView ArticleMATH
        31. Dias APS, Rodrigues A:Hopf bifurcation with S N http://static-content.springer.com/image/art%3A10.1186%2F2190-8567-3-6/MediaObjects/13408_2013_Article_32_IEq119_HTML.gif-symmetry. Nonlinearity 2009, 22: 627–666. 10.1088/0951-7715/22/3/007MathSciNetView ArticleMATH
        32. Wilson H: Computational evidence for a rivalry hierarchy in vision. Proc Natl Acad Sci USA 2003, 100: 14499–14503. 10.1073/pnas.2333622100View Article
        33. Wilson H, Blake R, Lee S: Dynamics of traveling waves in visual perception. Nature 2001, 412: 907–910. 10.1038/35091066View Article
        34. Diekman C, Golubitsky M, McMillen T, Wang Y: Reduction and dynamics of a generalized rivalry network with two learned patterns. SIAM J Appl Dyn Syst 2012, 11: 1270–1309. 10.1137/110858392MathSciNetView ArticleMATH
        35. Blake R, Yu K, Lokey M, Norman H: What is suppressed during binocular rivalry? Perception 1980, 9: 223–231. 10.1068/p090223View Article

        Copyright

        © C.O. Diekman et al.; licensee Springer 2013

        This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://​creativecommons.​org/​licenses/​by/​2.​0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
