Diffusion laws in dendritic spines
© Holcman and Schuss; licensee Springer. 2011
Received: 1 August 2011
Accepted: 27 October 2011
Published: 27 October 2011
Dendritic spines are small protrusions on a neuronal dendrite that are the main locus of excitatory synaptic connections. Although their geometry is variable over time and along the dendrite, they typically consist of a relatively large head connected to the dendritic shaft by a narrow cylindrical neck. The surface of the head is connected smoothly by a funnel or non-smoothly to the narrow neck, whose end absorbs the particles at the dendrite. We demonstrate here how the geometry of the neuronal spine can control diffusion and ultimately synaptic processes. We show that the mean residence time of a Brownian particle, such as an ion or molecule inside the spine, and of a receptor on its membrane, prior to absorption at the dendritic shaft depends strongly on the curvature of the connection of the spine head to the neck and on the neck's length. The analytical results solve the narrow escape problem for domains with long narrow necks.
Change of spine morphology can be induced by synaptic potentiation protocols [13–15] and indeed intracellular signaling such as calcium released from stores alters the morphology of dendritic spines in cultured hippocampal neurons. These changes in geometry can affect the spine-dendrite communication. One of the first quantitative assessment of geometry was obtained by a direct measurement  of diffusion though the spine neck. Using photobleaching and photorelease of fluorescein dextran, by generating concentration gradients between spines and shafts in rat CA1 pyramidal neurons, the time course of re-equilibration was well approximated by a single exponential decay, with a time constant in the range of 20 to 100 ms. The role of the spine neck was further investigated using flash photolysis of caged calcium [3, 17] and theory , and the main conclusion was that geometrical changes in the spine neck such as the length or the radius are key modulator of the spine-dendrite communication [12, 19, 20], affecting calcium dynamics. However, in all these studies, the nature of the connection between the neck and head was not considered. The theoretical studies [19, 21] considered non-smooth connection only of the head to the narrow cylindrical neck (Figure 1) and did not account for any effect of curvature. This is precisely the goal of this article to investigate the consequences of this connection.
The connection between the head and the neck is not only relevant for the three-dimensional diffusion, but also essential to the analysis of other synaptic properties. Indeed, synaptic transmission and plasticity involve the trafficking of receptors [22–27] such as AMPA or NMDA receptors (AMPARs or NMDARs) that mediate the glutamatergic-induced synaptic current. Single particle approaches have further [28, 29] revealed the heterogeneity of two-dimensional trajectories occurring on the neuron surface, suggesting that there are several biophysical processes involved in regulating the receptor motion. In addition, the number and type of receptors that shape the synaptic current  could be regulated by the spine geometry. This question was further explored theoretically [30, 31], using asymptotic expressions for the residence time and experimentally  by monitoring the movements of AMPARs on the surface of mature neurons using FRAP. Employing a combination of confocal microscopy and photobleaching techniques in living hippocampal CA1 pyramidal neurons, a correlation between spine shape parameters and the diffusion and compartmentalization of membrane-associated proteins was recently confirmed . Lateral diffusion seems to be a constitutive process of AMPAR trafficking; it depends on spine morphology and is restricted by the spine geometry .
The connection between the two parts in the context of the NET problem was attempted in [21, 35] for the oversimplified model of a discontinuous connection. Here, we study a large class of connections and reveal the role of curvature in the spine-neck connection in regulating diffusion flux through narrow necks. More specifically, we study here the residence time of a Brownian particle from the spine head to the absorbing end of the spine neck moving either on the surface or inside the spine. We use the results of [36, 37] for the mean first passage time (MFPT) to an absorbing boundary at the end of a cusp-shaped protrusion in the head. They account for the effects of curvature generated by the neck-head connection in the spine. The reciprocal of the MFPT is the rate of arrival (probability flux) of Brownian particles from the head to the dendrite . We calculate the narrow escape time (NET) from spine-shaped domains with heads connected smoothly and non-smoothly to the neck.
2 The NET from a domain with a bottleneck

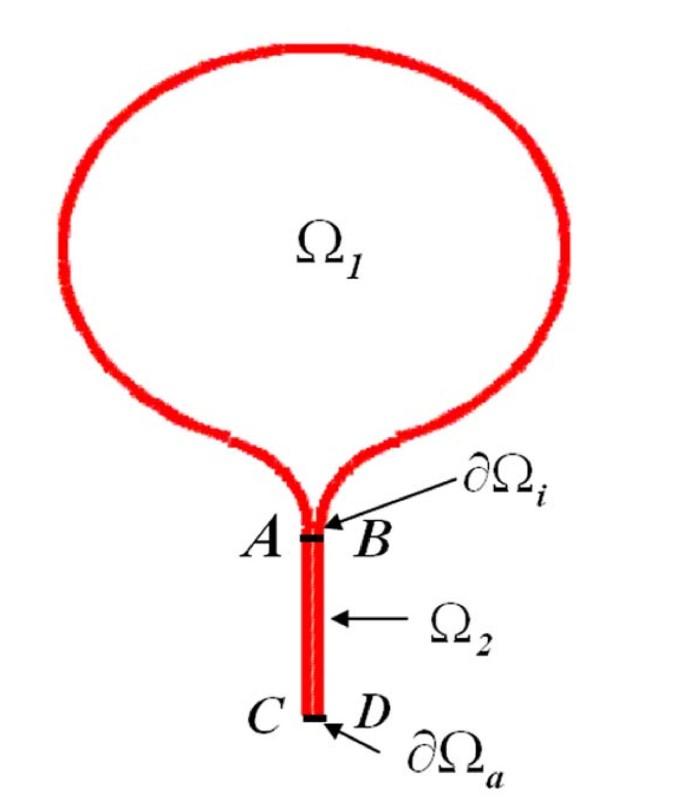

We consider two- and three-dimensional composite domains Ω that consist of a head Ω1 connected through a small interface ∂Ω ito a narrow cylindrical neck Ω2. The boundary of Ω is assumed reflecting to Brownian particles, except the far end of Ω2, denoted ∂Ωa, which is absorbing. For example, in Figure 2, the interface ∂Ω i is the black segment AB and the absorbing boundary ∂Ω a is the segment CD at the bottom of the strip. The NET from such a composite domain cannot be calculated by the methods of [39–42], because the contribution of the singular part of Neumann's function to the MFPT in a composite domain with a funnel or another bottleneck is not necessarily dominant. The method of matched asymptotic expansions requires different boundary or internal layers at a cusp-like absorbing window than at an absorbing window which is cut from a smooth reflecting boundary (see [43–46]). The methods used in [21, 35] for constructing the MFPT in a composite domain of the type shown in Figure 1d are made precise here and the new method extends to the domains of the type shown in Figure 1c.
First, we recount some basic facts about the NET [35, 39–41, 43–45, 47, 48]. The NET is the MFPT of a Brownian trajectory to a small absorbing part of the boundary of a domain, whose remaining boundary reflects Brownian trajectories. Refined asymptotic formulas for the NET were derived in [42, 46, 49, 50], and were used to estimated chemical reaction rates.
2.1 The MFPT from the head to the interface
where θ is the angle between x and the south-north axis of the sphere.
The case α = 0 corresponds to a circular cap of a small radius a cut from a closed surface.
where L x , R x are the principal curvatures at a point x, and |∂Ωi| = πa2 is the area of the circular cap.
where R c is the radius of curvature at the end of the funnel .
3 Connecting a head to a narrow neck
where the MFPT is , averaged over ∂Ω i with respect to the flux density of Brownian trajectories in Ω1 into an absorbing boundary at ∂Ω i (see  for further details).
Equation 26 gives the MFPT, averaged over Ω1. The averaging is a valid approximation, because the MFPT to ∂Ω i is constant to begin with (except in a negligible boundary layer). Equation 27 is the MFPT from the interface to the absorbing end ∂Ω a of the strip, and (28) follows from (5).
The MFPT is given by (8)-(19) above.
3.1 The NET from two- and three-dimensional domains with bottlenecks
where R is the radius of the sphere, a = R sin δ/2, and θ is the initial elevation angle on the sphere. If |Ω1| >> aL and L >> a, the last term in (32) is dominant, which is the manifestation of the many returns of Brownian motion from the neck to the head prior to absorption at ∂Ω a (see an estimate in ). The last line of (32) agrees with the explicit calculation in .
Finally, the influence of the neck length on the residence time is shown in Figure 5: changing the neck length modulates dramatically the residence time. Interestingly, the geometry of the connection affects much significantly the dimension two rather than that the three dimensional Brownian motion.
Discussion and conclusion
We have shown that the mean residence time (or flux) of Brownian particles inside a spine-like structure or on its surface depends strongly on the geometrical properties of both head and neck. Surprisingly, it also depends strongly on the smoothness of the connection between the two.
The application to a freely diffusing AMPA receptor, which is responsible for the excitatory synaptic current, shows that its motion on the spine membrane is strongly restricted by dendritic spine geometry. Our results can be used to estimate the residence time of the receptor on the membrane if interactions with any scaffolding molecules are neglected (the latter are mostly concentrated in a local microdomain called the PSD). Using Equation 32 for non-smooth geometry (Figure 1b) and for a spherical head of radius R = 1 μ m, a neck length L = 1 μ m, a neck radius a = 0.1 μ m, and a diffusion coefficient D = 0.1 μ m2/s, we obtain from the third line of Equation 32 that the residence time is τ2D≈ 260 s, while for a smooth connecting geometry (1a) with a curvature radius of R c = 1 μ m at the connecting neck-head τ2D≈ 1150 s (line 2 in Equation 32). Evidently, the residence time is more than doubled, leading to the conclusion that there is a significant difference between the function of spines with smoothly and non-smoothly connected necks. We conclude from this analysis that an AMPA receptors that do not interact with the PSD stay on a typical dendritic spine between one and a half to 5 min on average and this residence time is controlled mostly by the geometrical properties of the spine.
We now consider the residence time for freely diffusing particles such as molecules, mRNA, and ions (e.g., calcium) inside a dendritic spine. For a calcium ion, the diffusion constant is about Dca = 400 μ m2/s . Calcium ions that exit the spine only to the dendrite shaft at the end of the neck, but not through exchangers, give the following residence time estimates. Using formula 33 for a non-smooth connection between the spine head and the neck, we obtain that τ3D≈ 195 ms (line 1), while for a smooth connection with radius of curvature 1 μ m, the residence time is τ3D≈ 820 ms (line 3 in Equation 33). Interestingly, the mean residence time is tripled from the non-smooth to a smooth connection.
A remaining open question is to extend the present analysis to the case where many binding molecules can trap receptors. This effect should be expected to significantly increase the residence time inside a dendritic spine, as has already been observed in  for the case of a receptor inside the PSD. The present mathematical analysis of the residence time provides a solution to the narrow escape problem for domains with bottlenecks [21, 35]. Other generalizations of this study is to include the dynamics of many receptors [30, 56] or/and to study dendritic trafficking .
There are many other factors that affect the spine-dendrite communication with respect to calcium. This includes calcium pumps, endogenous buffers, calcium stores, the number and rates of exchangers. These mechanisms affect the residence of calcium in spines [58–60] and it would be interesting to add them in the present analysis.
This research was supported by an ERC starting Grant.
