Spatiochromatic information available from different neural layers via Gaussianization
The Journal of Mathematical Neuroscience volume 10, Article number: 18 (2020)
Abstract
How much visual information about the retinal images can be extracted from the different layers of the visual pathway? This question depends on the complexity of the visual input, the set of transforms applied to this multivariate input, and the noise of the sensors in the considered layer. Separate subsystems (e.g. opponent channels, spatial filters, nonlinearities of the texture sensors) have been suggested to be organized for optimal information transmission. However, the efficiency of these different layers has not been measured when they operate together on colorimetrically calibrated natural images and using multivariate informationtheoretic units over the joint spatiochromatic array of responses.
In this work, we present a statistical tool to address this question in an appropriate (multivariate) way. Specifically, we propose an empirical estimate of the information transmitted by the system based on a recent Gaussianization technique. The total correlation measured using the proposed estimator is consistent with predictions based on the analytical Jacobian of a standard spatiochromatic model of the retina–cortex pathway. If the noise at certain representation is proportional to the dynamic range of the response, and one assumes sensors of equivalent noise level, then transmitted information shows the following trends: (1) progressively deeper representations are better in terms of the amount of captured information, (2) the transmitted information up to the cortical representation follows the probability of natural scenes over the chromatic and achromatic dimensions of the stimulus space, (3) the contribution of spatial transforms to capture visual information is substantially greater than the contribution of chromatic transforms, and (4) nonlinearities of the responses contribute substantially to the transmitted information but less than the linear transforms.
Introduction
Neuroscience has a long tradition in using information theory both to quantify the performance of neurons [1] and to formulate principles that explain observed behavior using the socalled Efficient Coding Hypothesis [2, 3]. Information theory is useful at many scales of sensory processing [4–6].
On the one hand, a large body of the literature studies information transmission starting from a spiking neuron [7], including all sorts of additional constraints such as energy or size [8–12]. From these estimates of transmitted information in single cells, different summation strategies [13] or independence assumptions [14] are considered to give global estimates of the amount of information transmitted by a set of sensors.
This detailed lowlevel descriptions are certainly the basis for higherlevel behavioral effects, but psychophysics is usually described with more abstract models. In fact, cascades of linear+nonlinear layers of more schematic neurons [15–18] describe a wide range of psychophysical phenomena, including color [19, 20], spatial texture [21, 22], and motion [23]. On the other hand, these more schematic neural layers are also studied according to the Efficient Coding Hypothesis. Examples include the emergence of linear opponent chromatic channels [24] and their saturation [25–27], and the emergence of linear texture sensors (not only achromatic [28, 29], but also spatiochromatic [30, 31], equipped with chromatic adaptation [32]). Here texture sensors refer to mechanisms with receptive fields with excitatory and inhibitory patterns of different frequency and orientation. Redundancy reduction also explains the emergence of linear sensors sensitive to motion [33]. Finally, the saturation of the responses of these spatiotemporal sensors has also been derived from information theoretic arguments in the case of achromatic textures [34, 35] and motion [36].
In this work, we use these higherlevel models [18–23], which, being connected to physiology, are more related to the psychophysics of color and spatial texture. Informationtheoretic study of psychophysical models may address biologically relevant questions like: What perceptual behavior is more relevant to encode images? color constancy? or contrast adaptation? What mechanisms contribute to extract more information about the images? the chromatic opponent channels or the texture filters? What is the improvement due to the nonlinearities? being more flexible is always better? What kind of images are better represented by the visual system? smooth achromatic shapes or sharp chromatic patterns?
Quantitative answers to these questions require reliable estimators of transmitted information over the cascade of layers. These estimators have to work on highdimensional vectors, and more importantly, estimations should not depend on the specific expression of the response so that they could be applied to any model or even to raw experimental data.
In this work, we introduce a recent estimator of mutual information between multivariate variables based on Gaussianization [37–39] to address relevant sensory questions such as those stated before. Here we illustrate the kind of answers that can be found through this method by exploring the transmission of spatiochromatic information through a cascade of standard linear+nonlinear layers that address in turn basic psychophysical phenomena on color and texture [19–22]. A model of known analytic Jacobian [40, 41] is convenient because, for some redundancy measures such as total correlation, the modelfree estimations proposed here can be compared to estimations that use the analytical model. It is interesting that here we discuss that the analytical insight obtained from the model Jacobian for total correlation (as done in [40, 42, 43]) is not always applicable to predict the transmitted information. However, this poses no major problem if the estimator at hand does not depend on the model, which is the case in the proposed method.
The conventional way to check the Efficient Coding Hypothesis goes in the statisticstobiology direction. In that case, biologically plausible behaviors are shown to emerge from the optimization of specific informationtheoretic measures [24–36]. On the contrary, following [43, 44], here we go in the opposite direction from biology to statistics. Here we take a standard psychophysical model, which was not explicitly optimized to encode natural images, and we show it is remarkably good in terms of transmitted information.
Our results should not be misunderstood as a claim of infomax as the ultimate organization goal. Note that we do not propose to optimize the system according to that goal, but just show that a fixed plausible system performs quite well according to the goal. In fact, a large body of the literature includes additional constraints to information maximization [8–12, 26, 27, 29, 32, 36, 45]. Beyond disputes among specific goals, the method proposed here can be used to include transmitted information together with other goals in a combined cost function if the statisticstobiology strategy is preferred.
Materials: illustrative vision model and calibrated images
The Gaussianization tool presented in this work to measure the transmitted information is illustrated in a standard spatiochromatic retina–cortex model fed with colorcalibrated natural stimuli.
In this section, we first review the elements of this standard model, and then we show the distribution of natural images used in our experiments in terms of luminance, achromatic contrast, and chromatic contrast.
A standard spatiochromatic psychophysical pathway
The model considered here for illustrative purposes is a cascade of linear+nonlinear layers [18, 40, 41, 43]. In this setting, the ith layer takes the array of responses coming from a previous layer \(\boldsymbol{x}^{(i1)}\), applies a set of linear receptive fields that lead to the responses \(\boldsymbol{r}^{(i)}\), and these outputs interact to lead to the saturated responses \(\boldsymbol{x}^{(i)}\):
Specifically, the model used in the simulations below consist of three of such differentiable and invertible linear+nonlinear layers:
where we can identify the following standard processing elements (explicit equations in Appendix A).
Linear spectral integration
The spectral image \(\boldsymbol{x}^{(0)}\) is analyzed at each spatial location by linear photoreceptors tuned to long, medium, and short (LMS) wavelengths; in particular, we use the standard cone fundamentals LMS in [46]. The \(\boldsymbol{r}^{(1)}\) array contains the LMS retinal images.
Chromatic adaptation
We use the simplest chromatic adaptation scheme: the classical von Kries normalization [20], where the linear LMS signals are divided by an estimate of what is considered to be white in the scene. The \(\boldsymbol{x}^{(1)}\) array contains the von Kriesbalanced LMS retinal images.
Linear opponent color space
The LMS signals at each spatial location are linearly recombined into an opponent representation with Achromatic (luminance), Tritanopic (red–green) and Deuteranopic (yellow–blue) sensors. Specifically, \(\boldsymbol{r}^{(2)}\) contains the achromatic, tritanopic, and deuteranopic (ATD) images of Jameson & Hurvich opponent sensors [47–49].
Weberlike saturation
The linear ATD responses saturate [50, 51] to give brightness (nonlinear A) and nonlinear versions of images T and D. This saturation can be modeled in sophisticated ways with psychophysical [20, 52, 53] or statistical grounds [26, 27], but in \(\boldsymbol{x}^{(2)}\), we will use a simple dimensionwise nonlinearity using a \(\gamma <1\) exponent with parabolic correction at the origin [40] to avoid singularities in the Jacobian. This exponential with fixed γ is the simplest model for the Weberlike luminance–brightness relation and the observed saturation in chromatic opponent channels [49].
Up to \(\boldsymbol{x}^{(2)}\) the model consists of purely chromatic transforms that operate at each spatial location. In these initial layers, spatial context is not considered except for the scarce use made in chromatic adaptation to estimate the white. The final linear+nonlinear layer addresses spatiochromatic texture.
Linear texture filters and contrast sensitivity
In the simple model considered here, spatial transforms are applied over all images A, T, and D in parallel. Neglecting the interactions between ATD images is consistent with the results found in analyzing the spatiochromatic statistics of natural images: the chromatic variation of the statistical filters follows von Kriescorrected ATD directions regardless of the spatial distribution of the receptive field [32]. Here we use a crude localDCT model for the localoriented receptive fields in V1: the local oscillations applied to channel A account for the achromatic texture sensors [54], and those applied to arrays T and D account for the doubleopponent cells [55]. These texture sensors are shown in Appendix A. The gain of these linear filters (receptive fields) is weighted according to their frequency using achromatic and chromatic contrast sensitivity functions (CSFs) [56, 57]. The weights for the localDCT functions are based on the CSFs of the standard spatial observer defined for sinusoids [58] and on a procedure to transfer the weights from one domain to another [59]. The bandwidths of the achromatic and chromatic CSFs are markedly different. This bandwidth is related to the frequency response of magno, parvo, and konio cells [55, 60, 61]. The array \(\boldsymbol{r}^{(3)}\) consists of the spatial transforms of patches A, T, and D, frequency weighted and stacked one after the other.
Nonlinear interactions between texture sensors
Following [15–18, 22], the saturation of the sensors tuned to chromatic/achromatic textures has been modeled using a psychophysicallytuned divisive normalization [40, 41, 62]. Note that alternative cortical nonlinearities such as Wilson–Cowan equations [63] have been found to be equivalent to divisive normalization [64]. The same parameters for the normalization have been used for the achromatic part and the chromatic parts of the response. As in the linear case, no interaction has been considered between channels A, T, and D . Appendix A illustrates the impact of the parameters of divisive normalization on the flexibility of the nonlinearity.
Plausibility of the psychophysical model
Here we illustrate the plausibility of the specific blocks described before (with specific parameters described in Appendix A) by predicting results in image distortion psychophysics.
In image quality databases [65], observers assess the visibility of a range of distortions seen on top of natural images. A vision model is good if the predicted visibility correlates with human opinion. The visibility of a distortion from a psychophysical response model is computed by measuring the distance from the response vector of the original image to the response vector of the distorted image [66, 67]. In this context, we made two simple numerical experiments: (1) we checked if the consideration of more and more standard blocks in the model leads to consistent improvements of the correlation with human opinion, and (2) we checked how substantial modifications to the standard blocks affect its performance. In particular, (a) we changed the flexibility of the baseline masking model by decreasing or increasing the semisaturation constant in the denominator of the divisive normalization, which leads to more flexible and more rigid models, respectively; and (b) we generated a totally rigid model by neglecting all the nonlinearities. Appendix A illustrates these changes in flexibility of the response.
Figure 1 confirms that the progressive consideration of the blocks leads to consistent improvements in correlation. The final model (the whole cascade of standard modules) is plausible because of two reasons. First, the final correlation with human behavior is similar to stateoftheart image quality metrics [40, 41, 58, 68]. Second, Table 1 shows that the cascade of standard modules (baseline model) is better than more adaptive or more rigid versions of the model. This means that the considered parameters make biological sense. Of course, the correlation substantially increases with the spatial size of the image patches and receptive fields, but a model with exactly the same parameters on small image patches shows the same trend when considering the series of layers. These results illustrate the meaningfulness of the considered psychophysical blocks and its appropriate behavior when functioning together.
Finally, intuition about the informationtheoretic performance of the considered model may be obtained by visualizing the geometrical effect of the series of transforms on the manifold of natural images. This intuition is discussed in Appendix B.
Calibrated natural images
The IPL color image database [27, 32, 36] is well suited to study color adaptation because its controlled illumination under CIE A and CIE D65 allows straightforward application of von Kries adaptation. With the knowledge of the illumination, there is no need for extra approximations (e.g. grayworld) to estimate the white. Controlled scene acquisition and resulting CIE xy data are illustrated in Fig. 2.
Alternative calibrated choices could be the spectralimage datasets [69, 70] or the tristimuluscalibrated dataset [71], which also provide the illumination information from gray spheres located in the scenes.
We extracted \(19\cdot 10^{6}\) image patches from the database (expressed in CIE XYZ tristimulus values) and transformed them into the linear LMS representation. In fact, in this work, we consider the behavior of the model from \(\boldsymbol{r}^{(1)}\). This amounts to considering that the input to the system is the set of linear LMS images. To keep the dimensionality small for a proper comparison of the empirical and theoretical estimates of information, we kept the spatial extent small, only \(3\times 3\) pixels. As a result, the input stimuli \(\boldsymbol{r}^{(1)}\) and the response arrays live in 27dimensional spaces.
To check whether the transmitted information through the system is adapted to the statistics of the natural input, we consider the distribution of the considered samples over three relevant visual features: the average luminance, the achromatic contrast, and the chromatic contrast of the pattern in the image. To define these features, LMS images are expressed in the Jameson & Hurvich ATD space using no chromatic adaptation. In this representation, average luminance in cd/m^{2} units is simply the average of image A. The achromatic contrast is defined as the RMSE contrast of image A (standard deviation divided by the mean luminance). Similarly, the chromatic contrast is defined as the mean of the RMSE contrasts of images T and D, where the corresponding standard deviation is divided by the norm of the average color in the patch.
By computing these three features for the \(19 \cdot 10^{6}\) images we find a markedly nonuniform probability density function (PDF): image patches are mostly dark, and the variance of the deviations with regard to the mean is small both in luminance and in color (see Fig. 3). This distribution shows that in nature some regions of the image space are more frequent that others. The efficient coding hypothesis generically argues that the performance of the visual system should be shaped by this uneven distribution. Here we propose a quantitative comparison. In Sect. 5, we plot the information transmitted up to the cortical sensors (at layer \(\boldsymbol{x}^{(3)}\) in Eq. (2)) over the luminance/contrast dimensions to check if the transmitted information for specific images is related to how frequent these images are.
Methods: transmitted information from Gaussianization
In a sensory system where the input undergoes certain deterministic transform S, but the sensors are noisy:
the mutual information between input and output, \(I(\boldsymbol{r},\boldsymbol{x})\), is the information about the input vector r, which is shared by the response vector x [72] (Chap. 2). We will refer to \(I(\boldsymbol{r},\boldsymbol{x})\) as the information about the input captured by the response or as the information transmitted from the input to the response. This mutual information \(I(\boldsymbol{r},\boldsymbol{x})\) is also the information about the input available at the representation x.
In the context of the Efficient Coding Hypothesis, it is interesting to compare different image representations \(s(\boldsymbol{r})\) in terms of the amount of information they capture about the input for some given noise n. This would tell us about the relative contribution of the different operations in a model to get a better representation of the visual signal. Ideally, we would like to describe the trends of this performance measure \(I(\boldsymbol{r},\boldsymbol{x})\) from the analytical description of the response \(s(\boldsymbol{r})\), but this may not be possible, as discussed later in Sect. 6. Therefore empirical estimations from stimulusresponse pairs are very interesting.
Estimation of \(I(\boldsymbol{r},\boldsymbol{x})\) directly from samples and using the definitions based on the PDFs is not straightforward: it implies the estimation of multivariate PDFs, and this challenging problem introduces substantial bias in the results. This is also true for surrogates for performance such as the reduction of redundancy measured by the reduction in total correlation \(\Delta T(\boldsymbol{r},\boldsymbol{x})\) [42].
In this work, we solve the estimation of the transmitted information up to different layers of the visual pathway through the relation between the transmitted information I and the total correlation T. In particular, we use a novel estimator of T [38, 39], which only relies on (easytocompute) univariate density estimations: the rotationbased iterative Gaussianization (RBIG) [37].
The RBIG is a cascade of L nonlinear+linear layers, and the lth layer is made of marginal Gaussianizations \(\Psi ^{(l)}(\boldsymbol{x}^{(l)})\), followed by a rotation \(R^{(l)}\). Each of such layers is applied to the output of the previous layer:
For a big enough number of layers, this invertible architecture is able to transform any input PDF \(p(\boldsymbol{x}^{(0)})\) into a zeromean unitcovariance multivariate Gaussian even if the chosen rotations are random [37]. Theoretical convergence is obtained as the number of layers tends to infinity. However, in practical situations, early stopping criteria can be proposed taking into account the uncertainty associated with a finite number of samples [37]. Convergence even with random rotations implies that both elements of the transform are straightforward, univariate equalizations and random rotations. The differentiable and invertible nature of RBIG makes it a member of the normalizing flow family [73, 74]. Within this general family, differentiable transforms with the ability to remove all the structure of the PDF of the input data are referred to as density destructors [75]. By density destruction the authors in [75] mean a transform of the input PDF into a unitcovariance Gaussian or into a dcube aligned with the axes. The considered Gaussianization [37, 38] belongs to this family by definition. Total correlation describes the redundancy within a vector, that is, the information shared by the univariate variables [76, 77]. Note that strong relations between variables indicate a rich structure in the data.
Density destruction together with differentiability is useful to estimate the total correlation within a vector \(T(\boldsymbol{x}^{(0)})\). Imagine that the considered RBIG transforms the PDF of the input \(\boldsymbol{x}^{(0)}\) into a Gaussian through the application of L layers (L individual transforms). As the redundancy of the Gaussianized signal \(g_{\boldsymbol{x}}(\boldsymbol{x}^{(0)}) = \boldsymbol{x}^{(L)}\) is zero, the redundancy of the original signal \(T(\boldsymbol{x}^{(0)})\) should correspond to the cumulative sum of the individual variations \(\Delta T^{(l)}\) with \(l=1, \ldots ,L\), which take place along the L layers of RBIG while converting the original variable x into the Gaussianized variable \(g_{\boldsymbol{x}}(\boldsymbol{x})\). It is interesting that the individual variation in each RBIG layer only depends on (easy to compute) univariate negentropies, and therefore, after the L layers of RBIG, the total correlation is [39]
where the marginal negentropy of a ddimensional random vector is given by a set of d univariate divergences \(J_{m}(\boldsymbol{v}) = \sum_{i=1}^{d} D_{\mathrm{KL}}(p(v_{i}) \mathcal{N}(0,1))\). Therefore, using RBIG, the challenging problem of estimating one ddimensional joint PDF to compute \(T(\boldsymbol{x})\) reduces to solving \(d\times L\) univariate problems. Moreover, as opposed to the computation of variations of total correlation depending on the model transform, as, for instance, Eq. (9) discussed in Sect. 6, RBIG estimation is modelfree and does not involve any averaging over the whole dataset.
In the density destructor framework, where T is easy to compute using RBIG, the transmitted information from the input LMS image, r, to any of the considered layers downstream x, namely \(I(\boldsymbol{r},\boldsymbol{x})\), can be obtained from T in two ways:
where the relation in Eq. (6) is straightforward from the definitions of I and T in terms of entropies, and the sum would imply three Gaussianization transforms: one for the input, one for the responses, and an additional one for the concatenated inputresponse vectors \([\boldsymbol{r}, \boldsymbol{x}]\). Equation (7) also implies three Gaussianization transforms: the variables \(g_{\boldsymbol{r}}\) and \(g_{\boldsymbol{x}}\) come from the Gaussianization transforms of the images and the neural responses, respectively, and then we make a single computation of total correlation for the concatenated variable \([g_{\boldsymbol{r}}(\boldsymbol{r}),g_{\boldsymbol{x}}( \boldsymbol{x})]\) through an extra Gaussianization. It is important to note that, as opposed to Eq. (6), the strategy represented by Eq. (7) only implies one computation of T, not three.
Equation (7) is possible because I does not change under invertible transformations applied separately to each dataset [78]. Therefore \(I(\boldsymbol{r},\boldsymbol{x}) = I(g_{\boldsymbol{r}}( \boldsymbol{r}),g_{\boldsymbol{x}}(\boldsymbol{x}))\). Since we removed T within each individual dataset by applying individual density destructors, the only redundant information that remains in the concatenated vectors is that shared by the original datasets, and therefore \(I(g_{\boldsymbol{r}}(\boldsymbol{r}),g_{\boldsymbol{x}}( \boldsymbol{x})) = T([g_{\boldsymbol{r}}(\boldsymbol{r}),g_{ \boldsymbol{x}}(\boldsymbol{x})])\), and hence Eq. (7). See [39] for a more elaborate proof.
These two strategies (6) and (7) involve different numbers of computations of‘T. Therefore their accuracy depends on the nature of the data. Appendix C compares the estimations of transmitted information given by Eqs. (6) and (7) (and other estimators [79–81]) in scenarios where analytical solutions are available. The result of such an analysis is that for imagelike heavy tailed variables, the sum in Eq. (6) leads to a greater error. Therefore results in the experimental section are computed using Eq. (7).
Experiments
We conduct experiments to quantify (1) how much visual information is captured by different image representations along the layers of the neural model and (2) how much information is transmitted by the vision model for images with different visual features (e.g. different luminance, achromatic contrast, or chromatic contrast as considered in Sect. 2.3).
Here we describe the magnitudes measured. Then we describe the assumptions on the noise made throughout the experiments, and finally we describe global and local experiments, that is, made for all visual scenes and for scenes with specific features, respectively.
Measurements of transmitted information and redundancy reduction
In the experiments, we measure the mutual information between the LMS input and different layers of the considered networks, \(I(\boldsymbol{r}^{(1)},\boldsymbol{x})\), where x stands for one of the considered image representations (or layers in Eq. (2)). Therefore \(I(\boldsymbol{r}^{(1)},\boldsymbol{x})\) is the amount of information transmitted up to layer x or available at layer x. We also check how the input redundancy at the retinal representation, measured in terms of total correlation, gets reduced along the different image representations, that is, we compute \(\Delta T(\boldsymbol{r}^{(1)},\boldsymbol{x}) = T(\boldsymbol{r}^{(1)})  T(\boldsymbol{x})\) for different layers x.
The RBIG estimator of I uses Eq. (7). The RBIG estimator of ΔT uses Eq. (5) to estimate \(T(\boldsymbol{r}^{(1)})\) and \(T(\boldsymbol{x})\), and then it subtracts these results.
Regarding the ability to interpret the visual world, measuring the information available at certain image representation is more related to the visual function than measuring the (more technical) amount of redundancy reduced at that layer. Redundancy reduction is sometimes taken as a convenient surrogate of transmitted information, but, as discussed further in Sect. 6, ΔT and I are not always aligned. However, the analysis of ΔT is technically interesting because alternative estimators of ΔT based on the analytical expression of the vision model can be used to check the accuracy of the RBIG estimators. As the alternative estimator of ΔT discussed in Sect. 6, Eq. (9), only depends on the analytical expression of the model and on univariate entropies (for which very reliable estimators exist [80]), it will be referred to as theoretical estimation. The RBIG estimations of ΔT will be compared to this theoretical estimation given by Eq. (9), and checking ΔT is important because the proposed estimator of I relies on measures of T, as seen in Eqs. (6) and (7).
Assumptions on the noise and interpretation of results
Transmitted information between two layers of a network depends on the noise in the response. The noise in psychophysical systems is related to the discrimination ability of the observers [82, 83], but the nature of the noise is still under debate [84, 85]. Noise may have different sources, and its amount may depend on attention [86–88].
The specific debate on the noise is out of the scope of this work. However, the advantage of the RBIG estimate of transmitted information is that it does not rely on a specific analytical PDF of the noise, but only on the availability of noisy samples. Therefore it can handle responses corrupted with arbitrary noise sources.
Our experiments to estimate I consider a crude noise model using the following assumptions.

Assumption 1: singlestep transforms. In the path from the input up to the ith layer, we assume that noise is added to the signal only at the ith layer. This choice is equivalent to assuming that the mapping into the ith representation is a singlestep transform in which all the intermediate stages are noisefree.

Assumption 2: fixed signaltonoise ratio (SNR). The additive noise is assumed to be Gaussian with diagonal covariance. Moreover, each marginal standard deviation is assumed to be proportional to the mean amplitude of the signal for that coefficient at the ith layer. Specifically, we set the noise standard deviation at 5% of the amplitude of the signal in every case.
Assumption 1 should be understood correctly to avoid misinterpretations of the results. For instance, considering \(\boldsymbol {r}^{(1)} \rightarrow \boldsymbol {x}^{(2)}\) and \(\boldsymbol {r}^{(1)} \rightarrow \boldsymbol {x}^{(3)}\) as singlestep transforms means that noise is added in \(\boldsymbol {x}^{(2)}\) in the first case and in \(\boldsymbol {x}^{(3)}\), but not in \(\boldsymbol {x}^{(2)}\), in the second case. There is no problem to compare the representations \(\boldsymbol {x}^{(2)}\) and \(\boldsymbol {x}^{(3)}\). Particularly, if the mechanisms that perform these singlestep transforms have the same quality in terms of signaltonoise ratio (set in Assumption 2). The design question under these assumptions is: if you were able to build a mechanism to lead you either to representation \(\boldsymbol {x}^{(2)}\) or \(\boldsymbol {x}^{(3)}\), but the quality of the mechanism could not be better than certain SNR, which image representation would you prefer?
On the contrary, assuming that \(\boldsymbol {r}^{(1)} \rightarrow \boldsymbol {x}^{(3)} \equiv \boldsymbol {r}^{(1)} \rightarrow \boldsymbol {x}^{(2)} \rightarrow \boldsymbol {x}^{(3)}\), where noise is injected both in \(\boldsymbol {x}^{(2)}\) and in \(\boldsymbol {x}^{(3)}\), is a quite different alternative scenario. Under Assumption 1, the information captured by \(\boldsymbol {x}^{(3)}\) may be greater than the information captured by \(\boldsymbol {x}^{(2)}\), but this is not be possible in the alternative scenario where noise is injected at every layer. In this latter case the data processing inequality [72] (Chap. 2) states that the information lost (due to the noise) at the second layer cannot be recovered afterward.
Assumption 1 (or the singlestep transform assumption) and the alternative multiplestep transform are just different ways to consider where the noise comes from. Given that no conclusive prescription for the amount of noise is available for all the considered psychophysical stages [82–88], arbitrary assumptions would also be necessary in the multiplestep transform case.
In summary, for illustration purposes, Assumption 1 is valid as the alternative multiplestage transform scenario, and it allows us to compare different image representations with a clear design restriction (fixed signaltonoise ratio). Nevertheless, it is clear that results obtained from Assumption 1 have not to be interpreted in terms of the data processing inequality. This is because in all the experiments, we compare multiple singlestep transforms and not cascades of noisy blocks in which information loss propagates though the network. Similarly, the specific nature of the noise and the specific noise level set by Assumption 2 are just convenient choices for illustration purposes.
To conclude, let us recall again that RBIG estimation does not depend on the noise model. Therefore the procedure described further would not change using different assumptions (i.e. more sophisticated uncertainties in the sensors or noisy responses from actual measurements).
Global and local experiments
Information measures are defined as integrals over the whole space of inputs \(\boldsymbol{r}^{(1)}\) and the corresponding responses x. Experiments considering stimuli all across the input space will be referred to as global. Nevertheless, it is also interesting to consider how different regions of the image space are encoded. For instance, stimuli with specific visual features as those introduced in Sect. 2.3, for example, different luminance, achromatic contrast, or chromatic contrast. It is possible that a sensory system is specialized on stimuli with certain features. This question can be quantified by computing the amount of transmitted information about samples belonging to specific regions of the image space. Experiments considering specific regions of the image space will be referred to as local, that is, local in the space of image features.
In the global experiments below, 10 realizations of each estimation are done using \(0.5 \cdot 10^{6}\) randomly chosen stimuli from the image dataset that consists of \(19\cdot 10^{6}\) samples. Of course, the corresponding responses are also considered in each case.
In the local experiments below, the estimations at each location of the stimulus space are based on the images belonging to the corresponding luminance/contrast bin of the histogram shown in Fig. 3. In the local experiments, 10 realizations of each estimation are done for the data in each bin. In principle, each realization randomly selects 80% of the samples available in the bin. However, in the lowluminance/lowcontrast bins the population is very large, and considering that many samples slows down the estimation. Therefore no more than \(5\cdot 10^{5}\) of these randomly chosen samples were considered in each case. On the other hand, bins with less than 500 samples (in the highluminance/highcontrast corner) were discarded in the estimation because results may not be reliable. In the results below, in those lowpopulated bins, we plot a constant value from the boundary of bins with population bigger than 500, but this value is arbitrary, and these regions are not considered in the discussion.
In all the experiments, images and the corresponding responses are 27dimensional as stated in Sect. 2.3. The specific measurements shown are as follows.

Global experiments:

Global 1: Redundancy reduction at different layers of different models.

Global 2: Information available at different layers of different models.


Local experiments:

Local 1: Redundancy reduction in V1 for different kinds of stimuli.

Local 2: Redundancy reduction at different layers of the model and at different locations of the image space.

Local 3: Information available at different layers for different stimuli.

Local 4: Information available at V1 and the PDF of natural images.

Results
Global experiment 1: redundancy reduction at different layers of different models
In this experiment, we compare the RBIG estimates of ΔT with the socalled theoretical estimate given by Eq. (9). In this work, redundancy reduction experiments are just instruments to illustrate the reliability of the RBIG estimations of I, which depend on estimating T. Therefore, in these instrumental experiments on ΔT, only deterministic responses were considered to apply the estimate given by Eq. (9). The considered layers are those in Eq. (2). Redundancy reduction was computed in the baseline model (the one leading to the best correlation with human opinion in Fig. 1 and Table 1) and also with more rigid and more flexible versions of the model. As stated before, RBIG estimations subtract \(T(\boldsymbol{x})\) from \(T(\boldsymbol{r}^{(1)})\), whereas the theoretical estimates accumulate the reductions ΔT that happen at every intermediate layer. The results are displayed in Fig. 4.
The technical conclusion is that in general the RBIG estimate of ΔT is consistent with theoretical estimate. Note that the only significant exception is for the case of the model with more flexible divisive normalization. Nevertheless, even in this case, both estimates lead to the same qualitative conclusion: this too flexible model leads to less redundancy reduction than the baseline model. This general agreement suggests that total correlation estimates (the core under RBIG information transmission estimates, as seen in Eqs. (6) and (7)) can be trusted.
From the functional point of view, it is interesting to note that redundancy reduction in the nonlinear stages of the baseline model is almost negligible. For instance, see the plateau in \(\boldsymbol{r}^{(2)} \rightarrow \boldsymbol{x}^{(2)}\) (Weberlike nonlinearities) or in \(\boldsymbol{r}^{(3)} \rightarrow \boldsymbol{x}^{(3)}\) (divisive normalization of texture sensors). However, it seems that this kind of nonlinear processing actually prepares the data so that subsequent linear stages can do a better job in removing redundancy. Note that the identical linear parts \(\boldsymbol{x}^{(1)} \rightarrow \boldsymbol{r}^{(2)}\) (opponent transform) and \(\boldsymbol{x}^{(2)} \rightarrow \boldsymbol{r}^{(3)}\) (Filters+CSFs) attain bigger reductions after the application of the von Kries nonlinearity and the Weberlike nonlinearity. This is clearer by looking at the cumulative effect at the last layer: the baseline model (in black) is substantially better than a totally linear model (in blue).
Global experiment 2: information available at different layers of different models
This experiment compares the different image representations along the network in terms of the amount of information they share with an ideal input (noisefree LMS image). This global experiment for I includes the baseline model and six interesting variations: the more flexible and less flexible versions due to different divisive normalization semisaturation, the corresponding versions neglecting chromatic adaptation, and a totally linear version, which of course has no adaptation at all.
Measures at different layers include \(I(\boldsymbol{r}^{(1)},\boldsymbol{r}^{(1)}), I(\boldsymbol{r}^{(1)},\boldsymbol{x}^{(1)}), \ldots , I(\boldsymbol{r}^{(1)},\boldsymbol{x}^{(3)})\). As stated in Sect. 4.2, we assume that in different representations, noise is added after a singlestep transform, and the relative amount of noise in all the representations is the same (the deviation of the noise in each dimension is 5% of the dynamic range of that individual response). For instance, in the first case, referred to as \(I(\boldsymbol{r}^{(1)},\boldsymbol{r}^{(1)})\), we compute the shared information between noisefree LMS images and LMS images corrupted with Gaussian noise with the selected SNR in each pixel and color channel.
Results in Fig. 5, left, show that the cortical representation (adaptive contrast in local frequency in ATD) is much better than the original representation in the spatial domain and in the LMS color space. The cortical representation doubles the amount of information captured by retinal sensors (assuming equivalent SNR). It may seem that the von Kries adaptation is not worth it (if it was the last signal representation): see how it shares less information with the input than the LMS representation for the same noise level. However, when combined with other processing blocks, the resulting representations capture more information form the input than if it was not present. These results indicate the overall progressive improvement of the stimulus representation along the pathway.
Recall that according to the noise assumptions discussed in Sect. 4.2, each point along one of the curves in Fig. 5, left, actually mean the amount of information available for a system that would perform the considered processing from the input in a single step, that is, with all the noise added at that specific layer. Therefore increasing I does not violate the data processing inequality. It just points out that these inner representations are intrinsically better because they capture more information with sensors of the same SNR quality.
These results also show that the baseline model (which gets the best correlation with human opinion in Table 1) is also the one that captures more information about the input. Note that the different modifications of the model, that is, doing it more rigid (by canceling chromatic adaptation, by doing divisive normalization more rigid, or by considering a totally linear version) or more flexible (by increasing the adaptivity of divisive normalization) leads to poorer representations in terms of transmitted information. This conclusion is clearer by looking at different versions of the last representation (after the divisive normalization) at Fig. 5, right.
The nonlinear operations both in the saturation of ATD chromatic channels and in contrast adaptation lead to significant improvements in the amount of captured information. Note that about 28% of the improvement in available information at the final representation comes from the nonlinear operations, whereas 72% of the improvement comes from the linear operations. These increments in I in Fig. 5, left, are interesting taking into account that these nonlinear operations make almost negligible contributions to redundancy reduction (see \(\Delta T \approx 0\) for these layers in Fig. 4, left).
It is also interesting to note that spatial transforms (texture filters and contrast adaptation) definitely have a bigger contribution to the amount of captured information than chromatic transforms (von Kries adaptation, opponent channels, and Weberlike nonlinearities). Note that Fig. 5, left, shows that 67% of the improvement in available information at the final representation comes from the spatial operations, as opposed to the 33%, which comes from the chromatic operations. This is remarkable given the fact that tiny patches of 0.05 degrees were considered in our computations.
Local experiment 1: redundancy reduction at V1 for different kinds of stimuli
In all local experiments (which involve computations over the different bins of the image space), we considered only the baseline model.
In this first local experiment, RBIG estimations of \(\Delta T(\boldsymbol{r}^{(1)},\boldsymbol{x}^{(3)})\) at different locations of the image space are compared to the corresponding theoretical estimates. This experiment is interesting to check that the global accuracy of the information estimates illustrated in Fig. 4 actually hold for every location across the stimulus space. As stated before, experiments involving comparison with the theoretical estimate (Eq. (9)), require the use of deterministic responses.
The results in Fig. 6 show that the empirical RBIG estimate (top row) closely follows the theoretical estimate (middle row) all over the stimulus space. Note also that the difference between the estimates is small (green surfaces in the plots of the theoretical result), and this difference is similar to the uncertainties both estimates combined (green surfaces in the plots of the RBIG result). The average values of the relative difference and relative standard deviation are 0.12 and 0.09, respectively. Similar agreement is obtained for all the previous layers. Agreement of both estimates not only points out the accuracy of the proposed estimator but also the correctness of the analytical Jacobian involved in the theoretical estimate since the Jacobian of the response at the last layer includes all the previous layers.
This confirms that information estimates based on RBIG computation of total correlation can be trusted for every location of the stimulus space (not only globally as pointed out by the agreement of the estimates in Fig. 4).
Finally, the term of Eq. (9) that depends on the analytical Jacobian is shown in the bottom row. The analytical Jacobian not always represents the trends of ΔT. This illustrates that analytical description of the model is not enough to get complete insight on the informationtheoretic performance of the model. In the specific example in Fig. 6 the analytical term roughly determines the behavior for high chromatic contrast, but it is not the case for low chromatic contrasts. This limitation of the knowledge that can be extracted from the analytical expression of the model emphasizes the need of empirical estimators such as RBIG. Section 6 elaborates on this point.
Local experiment 2: redundancy reduction at different layers and different locations of the image space
This experiment extends the redundancy reduction values at the different layers presented in Fig. 4 to specific regions of the image space. Note that specific operations may reduce more redundancy for some stimuli than for others.

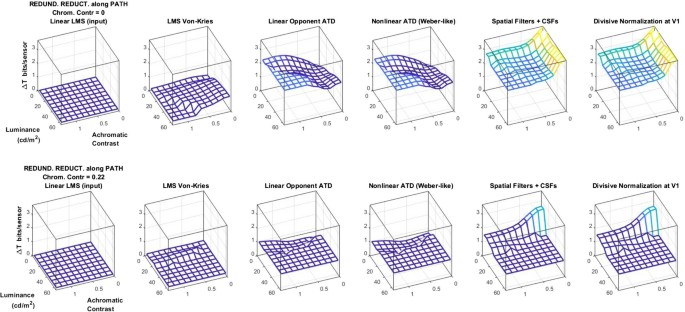

Figure 7 shows ΔT along the network in the achromatic contrast/luminance plane for two chromatic contrasts (the minimum and maximum in our images). We can identify general trends, which also apply to the other values of chromatic contrast not shown in the figure: (1) ΔT is always positive, that is, redundancy is effectively reduced by the system; (2) ΔT always increases along the pathway, which suggests that inner representations are better than earlier representations in terms of the information captured; and finally, (3) the increments along the way mainly occur at the linear stages, that is, the transform to opponent color representation and the transform from the spatial domain to the localfrequency domain. This relevance of linear stages in redundancy reduction is consistent to that found in Fig. 4. Note that these two linear stages are those that rotate the representation similarly to PCA (see Appendix B).
Local experiment 3: information available at different layers and different stimuli

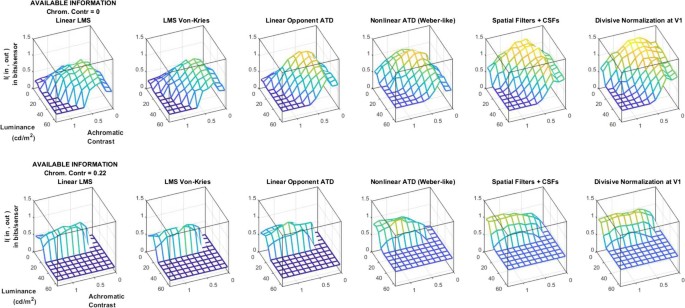

The object of this experiment (transmitted information per unit of volume, or per bin, of the stimulus space) highlights the kind of stimuli better represented by different layers. Figure 8 shows the information about the scenes (in bits/sensor) available from the different neural layers assuming that the same signaltonoise ratio of the sensors.
Only two chromatic contrasts are shown in Fig. 8, but the following trends also hold of the other chromatic contrasts omitted in the figure: assuming singlestage transforms and sensors with the same SNR, (1) the cortical representation is substantially better than the retinal representation since it captures more information about the scene, (2) different intermediate representations are progressively better from retina to cortex, and (3) improvements of the representation come from both linear and nonlinear stages.
Note that the total available information at certain layer (the global result in Fig. 5) is not the integral of the corresponding surface of local values in Fig. 8. However, progressive increase of the value for a region of the image space along the network can also be interpreted as an improvement of the representation. Similarly, the increments in I do not violate the data processing inequality given the singlestage transform assumption we are doing here.
It is important to note the differences of this I result, Fig. 8, with regard to the ΔT result, Fig. 7. First, whereas no substantial gain is obtained through the nonlinear stages in terms of redundancy reduction, the improvements in transmitted information due to the nonlinearities are significant. This is consistent with what was found in Figs. 4 and 5. Second, the distribution of I and ΔT over the stimulus space is substantially different; take, for instance, the bottom right plots in Figs. 7 and 8, respectively. The distribution of transmitted information seems more consistent with the statistics of the natural scenes in Fig. 3. That is the object of the comparison in the next section.
Local experiment 4: transmitted information and the PDF of natural images
Figure 9 explicitly compares the transmitted information up to the cortical layer \(\boldsymbol{x}^{(3)}\) for stimuli at all the locations of the considered image space (top) with the distribution of natural scenes over that space (bottom).
This comparison addresses the following questions: Does the system transmit the same amount of information for different images? if not, is this uneven transmission similar to the PDF of natural scenes?
This result shows that the considered psychophysically tuned network (no statistical knowledge was used in this crude biological model) transmits more information in the more frequent regions of the image space: note that the peak of transmitted information shifts to higher achromatic contrasts for bigger chromatic contrasts (as the PDF of natural images), and the amount of transmitted information decreases for high chromatic contrasts (as the PDF).
This result indicates a remarkable match between the properties of the cortical representation and the relative frequency of the stimuli in the image space. Note that the amount of available information for different images is not a byproduct of the relative probability of the images. For instance, if the luminance or contrast nonlinearities were expansive (as opposed to compressive as they are), then the noise would have more impact in the lowluminance/lowcontrast end. This would reduce the amount of available information for those signals using the same database to compute the results.
Discussion and final remarks
Efficiency of the network and hierarchy of transforms
The proposed method to estimate transmitted information allows a quantitative analysis of the different perceptual computations along the considered retina–cortex pathway.
The measurements presented above imply that the considered cortical representation captures substantially more information about the scene (factor ×2) than the retinal representation with sensors of the same signaltonoise quality.
Not all the perceptual computations contribute to the improvement of the signal representation in the same way. Transforms acting on spatial content of the signal lead to bigger improvements in information transmission than the purely chromatic transforms carried out in the first layers (67% versus 33%). The biggest contribution is due to the analysis of ATD images through localoriented filters and divisive normalization. The linear operations are responsible for most of the improvement in information transmission (about 72%), but the nonlinear/adaptive behavior of the system is responsible of a substantial 28%.
It is interesting that if model adaptivity is modified so that it has lower correlation with human opinion, then the amount of transmitted information reduces too. Moreover, local analysis on specific stimuli shows that the cortical representation captures relatively more information in the regions of the image space where natural images are more frequent. These two facts indicate that this biologically plausible model (not explicitly optimized for transmission) is efficient in terms of this information measure and it is well matched to the stimuli it faces.
This is in line with the approaches to the efficient coding hypothesis that go from biologytostatistics [43, 44], with the advantage of using a more appropriate performance measure (\(I( \boldsymbol{r},\boldsymbol{x})\) as opposed to \(\Delta T(\boldsymbol{r},\boldsymbol{x})\)). More generally, the proposed method can be used to estimate transmitted information in improved multigoal cost functions where constraints of different nature (energy, wiring, reconstruction error, adaptation, etc. [8–12, 26, 27, 29, 32, 36, 45]) can be taken into account. These improved multigoal cost functions can lead to interesting results in the conventional approach from statisticstobiology.
Transmitted information and analytical Jacobian
Here we discuss up to which point the trends of the transmitted information over the image space can be predicted from the analytical response. We will see that whereas the analytical Jacobian may be enough to understand the behavior of the system at a single layer (as done in [40, 43]), the relative relevance of different layers cannot be easily inferred from the corresponding derivatives. Therefore, a modelfree tool such as that presented is extremely useful in this context.
First we recall the relation between transmitted information (\(I( \boldsymbol{r},\boldsymbol{x})\), or information about the input captured by the inner image representation) and total correlation within the response (\(T(\boldsymbol{x})\), or information shared by the responses of different sensors \(x_{i}\)). Whereas maximizing \(I(\boldsymbol{r},\boldsymbol{x})\) is a sensible goal for a decoder devoted to solve visual problems from the response x, reduction of the redundancy \(T(\boldsymbol{x})\) is an alternative goal related to the maximization of transmitted information. Reasoning with \(T(\boldsymbol{x})\) may be useful in some situations because it is related to the analytic expression of the perception model.
From the definitions of mutual information in terms of entropy and conditional entropy [72] (Chap. 2), \(I(\boldsymbol{r},\boldsymbol{x}) = h(\boldsymbol{r}) + h( \boldsymbol{x})  h(\boldsymbol{r},\boldsymbol{x}) = h( \boldsymbol{x})  h(\boldsymbol{x}\boldsymbol{r})\); and from the concept of total correlation [76, 77], \(T(\boldsymbol{x}) = \sum_{i} h(x_{i})  h(\boldsymbol{x})\), it is easy to see that the following expression holds:^{Footnote 1}
Assuming that the intrinsic noise of the biological sensors cannot be reduced (and hence \(h(\boldsymbol{n})\) is fixed), Eq. (8) points out what the system should do to increase the transmitted information: (i) it should reduce the redundancy (the total correlation T) within the response array, and (ii) it should increase the sum of entropies of the responses of the individual sensors. On the one hand, in the particular case of independent noise in every sensor the transform should make the responses independent to obtain \(T(\boldsymbol{x})=0\). On the other hand, the entropies \(h(x_{i})\) cannot be arbitrarily increased via trivial response amplification because of energy constraints. Therefore, once redundancy has been decreased as much as possible (ideally, set to zero), as the energy (or variance) of each coefficient has to be limited, the first term can be maximized by marginal equalization. Note that marginal operations do not modify the total correlation [42]. Therefore, marginal equalization could be used to maximize entropy with constrained variance (e.g., obtaining uniform or Gaussian PDFs [72, Chap. 12]) without increasing T and thus maximizing I.
Equation (8) identifies univariate and multivariate strategies for information maximization. When trying to assess the performance of a sensory system, reduction of the multivariate total correlation \(T(\boldsymbol{x})\) seems the relevant term to look at because univariate entropy maximization can always be performed after joint PDF factorization through a set of (easytodo) univariate equalizations.
Then the reduction in redundancy \(\Delta T(\boldsymbol{r},\boldsymbol{x}) = T(\boldsymbol{r})  T( \boldsymbol{x})\) is a measure of performance that could be aligned with \(I(\boldsymbol{r},\boldsymbol{x})\). It is interesting that for deterministic responses, this performance measure ΔT can be written in terms of univariate quantities and the response model [42]:
Equation (9) is good for our purposes for two reasons: (1) in case the marginal difference \(\Delta h_{m}\) is approximately constant over the space of interest, the performance is totally driven by the Jacobian of the response, so it can be theoretically studied from the model, and (2) even if \(\Delta h_{m}\) is not constant, the expression is still useful to get reliable estimates of ΔT because the multivariate contribution may be obtained analytically from the Jacobian of the model and the rest reduces to a set of univariate entropy estimations (for which reliable estimates do exist [80]). In Sect. 5, estimates of ΔT using Eq. (9) were referred to as theoretical estimation (as opposed to modelagnostic empirical estimates purely based on Gaussianization of samples) because of this second reason. Note that as the Jacobian of the composition is the product of Jacobians, Eq. (9) implies that \(\Delta T(\boldsymbol{r}^{(1)},\boldsymbol{x}^{(j)}) = \Delta T( \boldsymbol{r}^{(1)},\boldsymbol{x}^{(i)}) + \Delta T( \boldsymbol{x}^{(i)},\boldsymbol{x}^{(j)})\).
In previous works, Eq. (9) has been used to describe the communication performance either in linear systems [89] or in nonlinear transforms such as divisive normalization [40, 42] and Wilson–Cowan interaction [43]. In those cases, interesting insight could be gained from the analytical expressions of the corresponding Jacobian. In the linear case the Jacobian is constant over the image space, and therefore it is relevant when considering different linear models, but it is irrelevant when comparing the transmitted information for different stimuli. In the nonlinear cases, authors used Eq. (9) to analyze the performance at a single layer, and \(\Delta h_{m}\) was explicitly shown to be roughly constant over the stimulus domain. Therefore the analytical Jacobian certainly explained the behavior of the system.
However, \(\Delta h_{m}\) may not be constant in general, and hence the trends obtained from the Jacobian of the model can be counteracted by the variation of \(\Delta h_{m}\).
In particular, the situation gets complicated if we want to study the relative effect of different layers in the cascade. At a single layer (whose Jacobian accumulates the effect of all previous layers [40]) the marginal difference of entropies with regard to the input may be constant over the domain and hence negligible. However, reasoning only with the Jacobians in the case of comparisons between multiple layers will only be valid if all the marginal differences of entropy between every layer are constant over the domain. This more strict condition is harder to fulfil in a specific network. For instance, in the illustrative model considered in our experiments, this condition not always holds (see the differences between the Jacobian and ΔT in Fig. 6).
Therefore, since the intuition from the analytical response is conclusive only in restricted situations, there is a need for empirical methods to estimate the transmitted information directly from sets of stimuli and the responses they elicit.
Relation to previous work
The analysis done here has a number of relevant differences with previous work that already analyzed the statistical performance of psychophysically plausible transforms.
For instance, previous works were limited either because explored a limited range of models or because they used limited performance measures. In [89] the authors addressed the interesting study of the gain that can be obtained from different redundancy reduction transforms, basically using Eq. (9), but restricted the analysis to linear cases to neglect the term that depends on the Jacobian. In [44] the authors do consider a more general (nonlinear) model, but their analysis is limited because they did not use a multivariate measure for the redundancy, but rather a set of mutual information measures between pairs of coefficients at the considered layer.
From the technical point of view, our analysis is related to the work of Foster et al., who are also concerned about the use of accurate informationtheoretic measures to study human vision [90]. The similarity is that they also use nonparametric measures of mutual information that operate directly on natural samples. The main difference is their focus on color vision and specifically on characterizing the performance of humans in different illumination conditions (e.g. determining the number of discriminable colors) [91–93]. This is related to the amount of color information in a scene that can be extracted from color measurements under other illumination [81, 90]. These problems are related to entropy and mutualinformation measures (which is the same problem that we address with RBIG), but they do not quantify the information flow through the visual pathway (mutual information between layers and redundancy within layers) that we address here to identify the most relevant computations. As an example, in [92, 94] the redundancy is considered only because of its impact on the available information for illumination compensation, but not as a measure of information transmission in the visual pathway.
An example of the conceptual difference is that chromatic transforms actually are less important for information transmission than spatial transforms when considering spatiochromatic aspects at the same time. Moreover, note that the von Kries color adaptation transform is actually the only transform leading to a representation that captures less information than the input representation (for sensors with the same SNR). Color adaptation may be more related to manifold alignment to improve colorbased classification (the kind of goal studied by Foster et al.) than to improve information transmission (the goal we study here). Despite these differences, the interesting improvements of Kozachenko–Leonenko entropy estimator [79] proposed in [81] should be compared in the future with RBIG because these two alternative estimators may be applicable to other problems of visual neuroscience [95].
This work originated from the analytical results for total correlation developed for cascades of linear+nonlinear networks [40] and from the analysis of redundancy reduction in Wilson–Cowan networks [43]. In both cases the analysis was restricted to achromatic stimuli. In [40] the approach was totally analytical, whereas [43] included RBIG estimations for the first time. However, the main difference is that those works considered not the transmitted information, but the redundancy reduction surrogate. In this work, we show that, in general, ΔT may not be a good descriptor for I.
Consistency between different databases and models
Although [43] is purely achromatic and does not consider I (which are crucial conceptual differences), comparison with those results is interesting for different reasons: (1) results of the redundancy at the input retinal representation are comparable (beyond the achromatic/chromatic difference), and some interesting consequences can be extracted; (2) the small gain in redundancy reduction at the Weber saturation and at the divisive normalization saturation (also obtained in [43]) has been better explained here.
First, it is interesting to note that this work and [43] use different databases: the colorimetrically calibrated IPL database [27, 32] and the radiometrically calibrated database by Foster, Nascimento, and Amano [69, 70] respectively. It is interesting that (for the users of the databases) the redundancy measures at the retinal input are comparable, which means that the statistics of both databases is similar. Specifically, for achromatic patches subtending 0.06 deg in the Foster et al. database the total correlation is about 3.8 bits/sensor [43]. Here, for color patches subtending a smaller angle (0.05 deg in the IPL database), the total correlation is 4.1 bits/sensor. This redundancy is a little bit bigger because it includes color, which is redundant, but not that big because the size is smaller, and hence less spatial structure is present, which should increase redundancy too. Moreover, this suggests that consideration of color on top of spatial information increases the redundancy by a small amount, which is consistent with the fact that spatial operations are more relevant in removing redundancy and transmitting information.
Second, the models considered in both works have similar structure, but they are not exactly the same: the one here has no specific layer for contrast computation and preserves the dimension in the local frequency transform. However, in both cases, small gain in ΔT is obtained at the Weberlike saturation and at the cortical divisive normalization. This consistency of behavior is a safety check for the models, but it is more interesting that the analysis of I proposed here and the point made about the advantage of using I as descriptor of performance explains the benefits of these saturations even though they do not contribute to the reduction of redundancy.
Further work: consequences in image quality metrics and image coding
The visual information fidelity (VIF) [96, 97] is an original approach to characterize the distortion introduced in an image, which is based in comparing the information about the scene that a human could extract from the distorted image with respect to the information that he/she could extract from the original image.
The results presented here can be incorporated in that attractive framework in different ways. On the one hand, we may improve the perceptual model including nonlinearities and more sophisticated noise schemes with no restriction because the nonparametric RBIG estimation is insensitive to the complexity of the model. On the other hand, estimations of mutual information in the original VIF scheme made crude approximations on the PDF of the signals to apply analytical estimations, which may be too biased. Better measures of I, not subject to approximated image models, do improve the original VIF results [98].
Following previous tradition of improvements of JPEG/MPEG compression based on divisive normalization [62, 99], current stateoftheart in image coding also uses this kind of perceptually inspired linear+nonlinear architectures [100]. The difference is that current architectures are optimized through the powerful automatic differentiation tools refined for deeplearning [101]. In this case the encoding and decoding transforms are optimized to minimize simultaneously the bitrate and the perceptual distortion. Nowadays these two magnitudes have different nature. However, with the considerations done here, VIF distortion, which is expressed in informationtheoretic units, could have more meaningful values, and the rate in the image coder could be bounded or modulated by the amount of information transmitted by the perceptual system, thus leading to a better optimization goal.

Availability of data and materials
The colorcalibrated image database is at http://isp.uv.es/data_calibrated.html. The code for the visual model is at https://isp.uv.es/code/visioncolor/infoDN.html. The RBIG estimator is at http://isp.uv.es/RBIG4IT.htm.
Notes
 1.
In the context of the noisy sensory system defined by Eq. (3), the transmitted information is \(I(\boldsymbol{r},\boldsymbol{x}) = h(\boldsymbol{x})  h( \boldsymbol{x}\boldsymbol{r})\), so, as the uncertainty of the response given the input is due to the noise, we have \(I(\boldsymbol{r},\boldsymbol{x}) = h(\boldsymbol{x})  h( \boldsymbol{n})\). Then, as the joint entropy is the sum of marginal entropies minus the shared information by all the components, \(h(\boldsymbol{x}) = \sum_{i} h(x_{i})  T(\boldsymbol{x})\), and by plugging this into the previous equation, we get Eq. (8).
Abbreviations
 LMS cones:

cones tuned to Long, Medium, and Short wavelength
 ATD:

Achromatic, Tritanopic, and Deuteranopic color channels
 CSF:

Contrast Sensitivity Function
 PDF:

Probability Density Function
 CDF:

Cumulative Density Function
 RBIG:

RotationBased Iterative Gaussianization
 SNR:

SignaltoNoise Ratio
References
 1.
MacKay D, McCulloch W. The limiting capacity of a neuronal link. Bull Math Biophys. 1952;14:127–35.
 2.
Barlow HB. Sensory mechanisms, the reduction of redundancy, and intelligence. In: Proc. of the nat. phys. Lab. symposium on the mechanization of thought process. vol. 10. 1959. p. 535–9.
 3.
Barlow H. Redundancy reduction revisited. Netw Comput Neural Syst. 2001;12(3):241–53.
 4.
Dimitrov A, Lazar A, Victor J. Information theory in neuroscience. J Comput Neurosci. 2011;30(1):1–5.
 5.
Friston K. The freeenergy principle: a rough guide to the brain? Trends Cogn Sci. 2009;13(7):293–301.
 6.
Tkacik G, Bialek W. Information processing in living systems. Annu Rev Condens Matter Phys. 2016;7:89–117.
 7.
Strong SP, Koberle R, de Ruyter van Steveninck RR, Bialek W. Entropy and information in neural spike trains. Phys Rev Lett. 1998;80:197–200.
 8.
Rehn M, Sommer F. A network that uses few active neurones to code visual input predicts the diverse shapes of cortical receptive fields. J Comput Neurosci. 2007;22:135–46.
 9.
Perge J, Koch K, Miller R, Sterling P, Balasubramanian V. How the optic nerve allocates space, energy capacity, and information. J Neurosci. 2009;29(24):7917–28.
 10.
Sengupta B, Faisal A, Laughlin S, Niven J. The effect of cell size and channel density on neuronal information encoding and energy efficiency. J Cereb Blood Flow Metab. 2013;33:1465–73.
 11.
Harris J, Jolivet R, Engl E, Attwell D. Energyefficient information transfer by visual pathway synapses. Curr Biol. 2015;25(24):3151–60.
 12.
Sterling P, Laughlin S. Principles of neural design. London: MIT Press; 2015.
 13.
Borghuis B, Ratliff C, Smith R, Sterling P, Balasubramanian V. Design of a neuronal array. J Neurosci. 2008;28(12):3178–89.
 14.
Koch K, McLean J, Segev R, Freed M, Berry M, Balasubramanian V, Sterling P. How much the eye tells the brain. Curr Biol. 2006;16(14):1428–34.
 15.
Heeger DJ. Normalization of cell responses in cat striate cortex. Vis Neurosci. 1992;9(2):181–97.
 16.
Carandini M, Heeger D. Summation and division by neurons in visual cortex. Science. 1994;264(5163):1333–6.
 17.
Tailby C, Solomon S, Dhruv N, Lennie P. Habituation reveals fundamental chromatic mechanisms in striate cortex of macaque. J Neurosci. 2008;28(5):1131–9.
 18.
Carandini M, Heeger DJ. Normalization as a canonical neural computation. Nat Rev Neurosci. 2012;13(1):51–62.
 19.
Abrams AB, Hillis JM, Brainard DH. The relation between color discrimination and color constancy: when is optimal adaptation task dependent? Neural Comput. 2007;19(10):2610–37.
 20.
Fairchild MD. Color appearance models. The WileyIS&T series in imaging science and technology. Sussex: Wiley; 2013.
 21.
Watson BA. Perceptualcomponents architecture for digital video. J Opt Soc Am A, Opt Image Sci Vis. 1990;7(10):1943–54.
 22.
Watson AB, Solomon JA. Model of visual contrast gain control and pattern masking. JOSA A. 1997;14(9):2379–91.
 23.
Simoncelli EP, Heeger D. A model of neuronal responses in visual area MT. Vis Res. 1998;38(5):743–61.
 24.
Buchsbaum G, Gottschalk A. Trichromacy, opponent colours coding and optimum colour information transmission in the retina. Proc R Soc Lond B, Biol Sci. 1983;220(1218):89–113.
 25.
Laughlin SB. Matching coding to scenes to enhance efficiency. In: Braddick OJ, Sleigh AC, editors. Physical and biological processing of images. Berlin: Springer; 1983. p. 42–52.
 26.
MacLeod D, von der Twer T. The pleistochrome: optimal opponent codes for natural colors. In: Heyer D, Mausfeld R, editors. Color perception: from light to object. Oxford: Oxford Univ. Press; 2003.
 27.
Laparra V, Jiménez S, CampsValls G, Malo J. Nonlinearities and adaptation of color vision from sequential principal curves analysis. Neural Comput. 2012;24(10):2751–88.
 28.
Hancock P, Baddeley R, Smith L. The principal components of natural images. Network. 1991;3:61–70.
 29.
Olshausen B, Field D. Emergence of simplecell receptive field properties by learning a sparse code for natural images. Nature. 1996;281:607–9. https://doi.org/10.1038/381607a0.
 30.
Ruderman DL, Cronin TW, Chiao CC. Statistics of cone responses to natural images: implications for visual coding. J Opt Soc Am A. 1998;15:2036–45.
 31.
Doi E, Inui T, Lee T, Wachtler T, Sejnowski T. Spatiochromatic receptive field properties derived from informationtheoretic analyses of cone responses to natural scenes. Neural Comput. 2003;15(2):397–417.
 32.
Gutmann MU, Laparra V, Hyvärinen A, Malo J. Spatiochromatic adaptation via higherorder canonical correlation analysis of natural images. PLoS ONE. 2014;9(2):86481.
 33.
Hyvärinen A, Hurri J, Hoyer PO. Natural image statistics: a probabilistic approach to early computational vision. Heidelberg: Springer.
 34.
Schwartz O, Simoncelli EP. Natural signal statistics and sensory gain control. Nat Neurosci. 2001;4(8):819–25.
 35.
Malo J, Gutiérrez J. V1 nonlinear properties emerge from localtoglobal nonlinear ICA. Netw Comput Neural Syst. 2006;17(1):85–102.
 36.
Laparra V, Malo J. Visual aftereffects and sensory nonlinearities from a single statistical framework. Front Human Neurosci. 2015;9:557. https://doi.org/10.3389/fnhum.2015.00557.
 37.
Laparra V, CampsValls G, Malo J. Iterative Gaussianization: from ICA to random rotations. IEEE Trans Neural Netw. 2011;22(4):537–49.
 38.
Johnson JE, Laparra V, Santos R, Camps G, Malo J. Information theory in density destructors. In: 7th int. conf. Mach. Learn., ICML 2019, workshop on invertible normalization flows. 2019.
 39.
Laparra V, Johnson E, Camps G, Santos R, Malo J. Information theory measures via multidimensional Gaussianization. 2020. https://arxiv.org/abs/2010.03807.
 40.
MartinezGarcia M, Cyriac P, Batard T, Bertalmío M, Malo J. Derivatives and inverse of cascaded linear+nonlinear neural models. PLoS ONE. 2018;13(10):1–49. https://doi.org/10.1371/journal.pone.0201326.
 41.
Martinez M, Bertalmío M, Malo J. In praise of artifice reloaded: caution with natural image databases in modeling vision. Front Neurosci. 2019. https://doi.org/10.3389/fnins.2019.00008.
 42.
Lyu S, Simoncelli EP. Nonlinear extraction of independent components of natural images using radial Gaussianization. Neural Comput. 2009;21(6):1485–519.
 43.
GomezVilla A, Bertalmío M, Malo J. Visual information flow in Wilson–Cowan networks. J Neurophysiol. 2020;123(6):2249–68. https://doi.org/10.1152/jn.00487.2019.
 44.
Malo J, Laparra V. Psychophysically tuned divisive normalization approximately factorizes the PDF of natural images. Neural Comput. 2010;22(12):3179–206.
 45.
Bullmore E, Sporns O. The economy of brain network organization. Nat Rev Neurosci. 2012;13:336–49.
 46.
Stockman A, Sharpe LT. The spectral sensitivities of the middle and longwavelengthsensitive cones derived from measurements in observers of known genotype. Vis Res. 2000;40(13):1711–37.
 47.
Hurvich LM, Jameson D. An opponentprocess theory of color vision. Psychol Rev. 1957;64(6):384–404.
 48.
Capilla P, Malo J, Luque M, Artigas JM. Colour representation spaces at different physiological levels: a comparative analysis. J Opt. 1998;29(5):324.
 49.
Stockman A, Brainard DH. Color vision mechanisms. In: Bass M, editor. OSA handbook of optics. 3rd ed. New York: McGrawHill; 2010. p. 147–52. 3rd.
 50.
Krauskopf J, Gegenfurtner K. Color discrimination and adaptation. Vis Res. 1992;32(11):2165–75.
 51.
Romero J, García JA, Jiménez del Barco L, Hita E. Evaluation of colordiscrimination ellipsoids in twocolor spaces. J Opt Soc Am A. 1993;10(5):827–37. https://doi.org/10.1364/JOSAA.10.000827.
 52.
CIECommission. Colorimetry  Part 4: CIE 1976 L*a*b* colour space. Technical Report ISO/CIE 116644:2019. CIE; 1976.
 53.
Luo M, Hunt R. The structure of the CIE 1997 colour appearance model (CIECAM97s). Color Res Appl. 1998;22:138–46.
 54.
Ringach DL. Spatial structure and symmetry of simplecell receptive fields in macaque primary visual cortex. J Neurophysiol. 2002;88(1):455–63.
 55.
Shapley R, Hawken M. Color in the cortex: single and doubleopponent cells. Vis Res. 2011;51(7):701–17.
 56.
Campbell FW, Robson JG. Application of Fourier analysis to the visibility of gratings. J Physiol. 1968;197:551–66.
 57.
Mullen KT. The CSF of human colour vision to redgreen and yellowblue chromatic gratings. J Physiol. 1985;359:381–400.
 58.
Watson AB, Malo J. Video quality measures based on the standard spatial observer. In: Image processing. 2002. Proceedings. 2002 international conference on. vol. 3. New York: IEEE; 2002. p. 41.
 59.
Malo J, Pons A, Felipe A, Artigas J. Characterization of the human visual system threshold performance by a weighting function in the Gabor domain. J Mod Opt. 1997;44(1):127–48.
 60.
MartinezUriegas E. Chromaticachromatic multiplexing in human color vision. In: Kelly DH, editor. Vis. sci. and eng.: models and appl. New York: Dekker; 1994. p. 117–87.
 61.
Cai D, DeAngelis GC, Freeman RD. Spatiotemporal receptive field organization in the LGN of cats and kittens. J Neurophysiol. 1997;78(2):1045–61.
 62.
Malo J, Epifanio I, Navarro R, Simoncelli EP. Nonlinear image representation for efficient perceptual coding. IEEE Trans Image Process. 2006;15(1):68–80.
 63.
Wilson HR, Cowan JD. A mathematical theory of the functional dynamics of cortical and thalamic nervous tissue. Kybernetik. 1973;13(2):55–80.
 64.
Malo J, EsteveTaboada J, Bertalmío M. Divisive normalization from Wilson–Cowan dynamics. Quant Biol. 2019. ArXiv: https://arxiv.org/abs/1906.08246.
 65.
Ponomarenko N, Carli M, Lukin V, Egiazarian K, Astola J, Battisti F. Color image database for evaluation of image quality metrics. In: Proc. int. workshop on multimedia signal processing. 2008. p. 403–8.
 66.
Wang Z, Bovik AC, Sheikh HR, Simoncelli EP. Image quality assessment: from error visibility to structural similarity. IEEE Trans Image Process. 2004;13(4):600–12.
 67.
Laparra V, MuñozMarí J, Malo J. Divisive normalization image quality metric revisited. JOSA A. 2010;27(4):852–64.
 68.
Hepburn A, Laparra V, Malo J, McConville R, Santos R. Perceptnet: a human visual system inspired neural network for estimating perceptual distance. In: IEEE int. conf. im. proc. (ICIP). 2020. p. 121–5. https://doi.org/10.1109/ICIP40778.2020.9190691.
 69.
Foster DH, Amano K, Nascimento SM. Timelapse ratios of cone excitations in natural scenes. Vis Res. 2016;120:45–60.
 70.
Nascimento SM, Amano K, Foster DH. Spatial distributions of local illumination color in natural scenes. Vis Res. 2016;120:39–44.
 71.
VazquezCorral J, Párraga C, Baldrich R, Vanrell M. Color constancy algorithms: psychophysical evaluation on a new dataset. J Imaging Sci Technol. 2009;53(3):31105–1311059.
 72.
Cover TM, Thomas JA. Elements of information theory. 2nd ed. Hoboken: WileyInterscience; 2006.
 73.
Huang CW, Kruger D. Proc. ICML workshop on invertible neural nets and normalizing flows. int. conf. mach. learn. 2019. https://invertibleworkshop.github.io/INNF_2019/accepted_papers/.
 74.
Huang CW, Kruger D. Proc. ICML workshop on invertible neural nets and normalizing flows. int. conf. mach. learn. 2020. https://invertibleworkshop.github.io.
 75.
Inouye D, Ravikumar P. Deep density destructors. In: 35th ICML. Proc. Mach. Learn. Res. vol. 80. 2018. p. 2167–75.
 76.
Watanabe S. Information theoretical analysis of multivariate correlation. IBM J Res Dev. 1960;4(1):66–82.
 77.
Studeny M, Vejnarova J. In: Jordan MI, editor. The multiinformation function as a tool for measuring stochastic dependence. Norwell: Kluwer Academic; 1998. p. 261–98.
 78.
Kraskov A, Stögbauer H, Grassberger P. Estimating mutual information. Phys Rev E. 2004;69:066138.
 79.
Kozachenko LF, Leonenko NN. Sample estimate of the entropy of a random vector. Probl Inf Transm. 1987;23:95–101.
 80.
Szabó Z. Information theoretical estimators toolbox. J Mach Learn Res. 2014;15:283–7.
 81.
MarinFranch I, Foster DH. Estimating information from image colors: an application to digital cameras and natural scenes. IEEE Trans Pattern Anal Mach Intell. 2013;35(1):78–91.
 82.
Ahumada A. Putting the visual system noise back in the picture. J Opt Soc Am A. 1987;4(12):2372–8.
 83.
Burgess AE, Colborne B. Visual signal detection. IV. Observer inconsistency. J Opt Soc Am A. 1988;5(4):617–27.
 84.
Georgeson M, Meese T. Fixed or variable noise in contrast discrimination? The jury’s still out. Vis Res. 2006;46(25):4294–303.
 85.
Neri P. How inherently noisy is human sensory processing? Psychon Bull Rev. 2010;17:802–8.
 86.
Goris L, Movshon J, Simoncelli E. Partitioning neuronal variability. Nat Neurosci. 2014;17(6):858–65.
 87.
MorenoBote R, Beck J, Kanitscheider I, Pitkow X, Latham P, Pouget A. Informationlimiting correlations. Nat Neurosci. 2014;17(10):1410–7.
 88.
Kanitscheider I, CoenCagli R, Pouget A. Origin of informationlimiting noise correlations. Proc Natl Acad Sci. 2015;112(50):6973–82.
 89.
Bethge M. Factorial coding of natural images: how effective are linear models in removing higherorder dependencies? JOSA A. 2006;23(6):1253–68.
 90.
Foster DH. The verriest lecture: color vision in an uncertain world. JOSA A. 2018;35(4):192–201.
 91.
Foster DH, Nascimento SMC, Amano K. Information limits on neural identification of colored surfaces in natural scenes. Vis Neurosci. 2004;21(3):331–6. https://doi.org/10.1017/S0952523804213335.
 92.
Foster DH, MarínFranch I, Amano K, Nascimento SMC. Approaching ideal observer efficiency in using color to retrieve information from natural scenes. J Opt Soc Am A. 2009;26(11):14–24.
 93.
MarinFranch I, Foster DH. Number of perceptually distinct surface colors in natural scenes. J Vis. 2010;10(9):9–10.
 94.
Foster DH, MarinFranch I, Nascimento SMC. Coding efficiency of CIE color spaces. In: Proc. 16th color imag. conf. Soc. imag. sci. tech. 2008. p. 285–8.
 95.
Victor J. Binless strategies for estimation of information from neural data. Phys Rev E. 2002;66(5):051903.
 96.
Sheikh HR, Bovik AC, de Veciana G. An information fidelity criterion for image quality assessment using natural scene statistics. IEEE Trans Image Process. 2005;14(12):2117–28.
 97.
Sheikh HR, Bovik AC. Image information and visual quality. IEEE Trans Image Process. 2006;15(2):430–44.
 98.
Malo J. Information flow under cortical magnification: Gaussianization estimates and theoretical results. In: Comp. neurosci. CNS 2020. Workshop on inf. theory. 2020. https://www.cnsorg.org/cns2020workshops.
 99.
Malo J, Gutiérrez J, Epifanio I, Ferri FJ, Artigas JM. Perceptual feedback in multigrid motion estimation using an improved dct quantization. IEEE Trans Image Process. 2001;10(10):1411–27.
 100.
Ballé J, Laparra V, Simoncelli EP. Endtoend optimized image compression. In: 5th int. conf. learn. repres., ICLR 2017. 2017.
 101.
Goodfellow I, Bengio Y, Courville A. Deep learning. Cambridge: MIT Press; 2016. http://www.deeplearningbook.org.
 102.
Malo J, Luque MJ. Colorlab: The Matlab toolbox for colorimetry and color vision. Internet site. 2002. http://isp.uv.es/code/visioncolor/colorlab.html.
 103.
Malo J, Gutierrez J. Vistalab: the Matlab toolbox for spatiotemporal vision. Internet site. 1997. http://isp.uv.es/code/visioncolor/vistalab.html.
 104.
Simoncelli E. Statistical models for images: compression, restoration and synthesis. In: Farques MP, editor. IEEE asilomar conf. sign. syst. comp. Asilomar, CA, USA, vol. 1, 1998. p. 673–8.
 105.
Cardoso J. Dependence, correlation and Gaussianity in independent component analysis. J Mach Learn Res. 2003;4:1177–203.
 106.
Maloney L. In: Gegenfurtner KR, Sharpe LT, editors. Physicsbased approaches to modeling surface color perception. Cambridge: Cambridge University Press; 1999. p. 387–422.
 107.
Jimenez S, Malo J. The role of spatial information in disentangling the irradiance–reflectance–transmittance ambiguity. IEEE Trans Geosci Remote Sens. 2014;52(8):4881–94.
 108.
Simoncelli EP, Olshausen BA. Natural image statistics and neural representation. Annu Rev Neurosci. 2001;24(1):1193–216.
 109.
Huang J, Mumford D. Statistics of natural images and models. In: IEEE CVPR. vol. 1. 1999. p. 541–7.
 110.
Malo J, Ferri F, Albert J, Soret J, Artigas JM. The role of perceptual contrast nonlinearities in image transform quantization. Image Vis Comput. 2000;18(3):233–46.
 111.
Moorthy AK, Bovik AC. Blind image quality assessment: from natural scene statistics to perceptual quality. IEEE Trans Image Process. 2011;20(12):3350–64.
 112.
Portilla J, Strela V, Wainwright M, Simoncelli E. Image denoising using scale mixtures of Gaussians in the wavelet domain. IEEE Trans Image Process. 2003;12(11):1338–51.
 113.
Sinz F, Bethge M. The studentt mixture as a natural image patch prior with application to image compression. J Mach Learn Res. 2014;15:2061–86.
 114.
van den Oord A, Schrauwen B. The studentt mixture as a natural image patch prior with application to image compression. J Mach Learn Res. 2014;15:2061–86.
 115.
Ruderman D. The statistics of natural images. Netw Comput Neural Syst. 1994;5(4):517–48.
Acknowledgements
I thank the attendees to my lectures on Information theory for Visual Neuroscience and particularly to Vir for encouraging me to write this with the promise of a travel.
Funding
This work was partially funded by the Spanish Government through the MINECO grant DPI201789867C22R and by the Generalitat Valenciana through the grant GrisoliaP/2019/035.
Author information
Affiliations
Contributions
The corresponding (and only) author did all the work. All authors read and approved the final manuscript.
Corresponding author
Ethics declarations
Ethics approval and consent to participate
Not applicable.
Competing interests
The author declares that he has no competing interests.
Consent for publication
The author supports the publication.
Appendices
Appendix A: Equations of the standard vision model
In this appendix, we list the equations for the linear and the nonlinear parts of the layers. The linear transforms in the model are always of the form
where the matrix \(L^{(i)}\) depends on the meaning of the layer. The input layer transforms the spectral radiance in each spatial location into the LMS tristimulus vectors. In this case the matrix \(L^{(1)}\) is made of the color matching functions of LMS cones [46].
The linear part of the second layer transforms von Kriesadapted LMS responses into ATD channels. In this case, the matrix \(L^{(2)}\) is the linear change of basis from LMS to ATD, and in our model, we chose the Jameson and Hurvich ATD space [47].
The linear part of the third layer transforms the Webersaturated ATD images into a localfrequency representation, and the responses of different frequencies are weighted according to the CSF. Therefore \(L^{(3)} = \Lambda _{CSF}\cdot B\), where the rows of the matrix B contain the basis functions of a local 2D discrete cosine transform, and \(\Lambda _{CSF}\) is a diagonal matrix with the weights corresponding to each frequency and color channel. The shape of the receptive fields (basis functions or texture sensors) in B is shown in Fig. 10. Here the sensitivities for the achromatic and the chromatic channels in the Fourier domain [56, 57] are transformed into the cosine domain according to the procedure described in [59].
The first nonlinear transform performs von Kries adaptation [20]:
where the scaling matrix is diagonal with \(M(\mathbf{r}^{(1)})_{ii} = \frac{T_{i}(\textrm{canonical})}{T_{i}(\textrm{scene})}\), where \(T_{i}\) are the tristimulus values of what is considered to be white in the input scene and in a canonical scene.
The second nonlinear transform is a Weberlike saturation [20, 50, 51], which here is implemented as a simple pointwise exponentiation (with \(\gamma <1\)):
The third nonlinear transform is implemented using the standard divisive normalization [18]:
where the stabilization constant K and the interaction kernel H are computed as proposed in [41] to scale the responses of each subband as in the localfrequency domain. This is related to the underlying Wilson–Cowan implementation of divisive normalization [64]. Note that the vector of semisaturation constants b controls the flexibility of the nonlinearity. If b is reduced, then the signaldependent term in the denominator is more relevant. On the contrary, very large semisaturations imply a rigid nonlinearity. This is illustrated in Fig. 11.
Our implementation is based on the Matlab libraries Colorlab [102] and Vistalab [103], and it is available at http://isp.uv.es/code/visioncolor/infoDN.html.
Appendix B: Manifold of images through the visual pathway
Here we present scatter plots of the spatiochromatic samples at different layers of the considered model and the marginal PDFs throughout the network. These transforms illustrate in practice the comments made in Sect. 6 on Eq. (8): to increase the transmitted information, redundancy between the responses at each layer throughout the pathway should be reduced, and the marginal PDFs should be equalized.
Moreover, visualization of the marginal PDFs and the corresponding joint PDFs is interesting in case we want to propose models for the marginals, as in [44, 104], to make analytical estimations of the marginal entropies in Eqs. (8) or (9).
Figure 12 shows the geometrical effect of the pointwise chromatic transforms that occur at the first layers of the network. We display selected projections of the 27dimensional arrays to illustrate (1) the distribution of the chromatic information (response of color sensors, LMS or ATD, at a fixed spatial location, in the scatter plots of the first row) and (2) the distribution of the spatiochromatic information (response of color sensors, A, T, and D tuned to different spatial locations, either close spatial neighbors (middle row) or more distant neighbors (bottom row)).
In the input representation of LMS or \(\boldsymbol{r}^{(1)}\) vectors, the responses are strongly correlated, both between sensors of different spectral sensitivity and between sensors tuned to different spatial locations (see the alignment of the scatter plots and the numbers in blue representing 2ndorder correlation). This represents the spectral [106, 107] and spatial [108] smoothness of natural scenes. As no chromatic adaptation has been applied yet, the scenes under reddish illumination lead to a distinctly separated blob in the color manifold (top plot of the first column). Note also the lower length of this cluster due to the lower luminance of the CIE A illumination in the experimental setting. In the spatiochromatic rows (still the first column), note that alignment of the scatter plot corresponding to sensors that are closer in space is bigger, consistently with a bigger correlation measure. Not surprisingly, spatial smoothness decays with distance.
Divisive normalization by the white (von Kries adaptation, 2nd column) aligns the distinct clusters corresponding to the CIE D65 and CIE A in the input representation (see scatter plot and increased correlation measure), but it does not introduce qualitative changes in the distributions with spatial information.
Transform to opponent channels (3rd column) substantially reduces the correlation between color sensors at a fixed location. It is remarkable how Jameson and Hurvich opponent transform rotates the manifold as a sort of PCA even though it is not based on any statistical consideration. This is consistent with efficient coding interpretations of this stage [24]. Nevertheless, responses of chromatic sensors T and D are still strongly correlated to their spatial neighbors. In fact, the spatial correlation of the chromatic sensors is similar to the achromatic counterpart (in previous columns). In the case of chromatic sensors, spatial correlation also decays with distance.
Nonlinear saturation of the response at each chromatic sensor (4th column) reduces the correlation even further. Note that here we just picked a crude exponential saturation with fixed exponent following the Weberlike curves of the brightness and opponent mechanisms [50, 51]. However, this psychophysically inspired choice reduced the correlation again, consistently with efficient coding interpretations of this nonlinearity [26, 27]. However, as in the previous layers, this chromatic transform also has small effect on the spatial interaction between the sensors (mid and bottom rows of the 4th column). Finally, it is important to mention the effect of this saturation in the joint PDF: note the fourleafclover shape of the color manifold projected onto the nonlinear TD plane (topright scatter plot). This fourleafclover shape is a characteristic consequence of the saturation since it also appears in the spatial transforms based on divisive normalization and has consequences on the bimodal nature of the marginal PDFs (see Figs. 13–14) reported before [44].
Figure 13 illustrates the effect of the spatial transforms: texture sensors with local oriented receptive fields tuned to different frequencies weighted by achromatic and chromatic CSFs (linear responses \(\boldsymbol{r}^{(3)}\)) and divisive normalization (nonlinear responses \(\boldsymbol{x}^{(3)}\)).
In each case, linear and nonlinear, on the left and right panels, respectively, we display samples in 3d spaces corresponding to sensors tuned to zero frequency and to two lowfrequency components of vertical and horizontal orientation. We also represent samples in 2d projections for a better assessment of the shape of the joint PDF. This is done for three kinds of chromatic sensors: achromatic, redgreen, and yellowblue (on the top, med, and bottom rows, respectively).
In this case, the 2ndorder correlation measure C, given in the previous figure (numbers in blue), was not included because here differences are more subtle: C is basically negligible in all cases, and differences are in the level of the estimation error. Actually, differences between these representations have to be described by more appropriate higherorder (multivariate) estimates proposed in this work, the total correlation, and the transmitted information.
The scatter plots in the first column illustrate how the texture sensors reorient the PDFs of the spatial neighbors of the previous layers. In the bottom rows of the previous figure the PDFs were systematically correlated regardless of the chromatic manipulations. The spatial transforms applied to the A, T, and D parts of the array \(\boldsymbol{x}^{(2)}\) virtually remove the 2ndorder correlation. This is consistent with the efficient coding interpretation of this linear filter bank [28–32].
The top left scatter plot shows that stimuli with specific visual features actually give the expected response because it is located in the corresponding region of the space: note, for instance, the horizontal/vertical patterns of high contrast and different polarity aligned along their corresponding axis and located along the zerofrequency axis according to their brightness.
As always throughout this Appendix, equivalent plots represent the same sets of samples. Therefore the scatter plots of the second and third rows (still left column) represent the very same set of images as the topleft scatter plot. However, the location of these images in the chromatic texture axes is markedly different because of two reasons: (1) chromatic contrast is smaller than achromatic contrast in natural images (note that images with high chromatic contrast in Fig. 3 are less frequent), and on top of that; (2) the chromatic CSFs has lower bandwidth than the achromatic filter, so the high frequency color oscillations are strongly attenuated by the system. As a result, the images are clustered along the DC color axis. This difference in amplitude of the oscillations can be seen in the extent of the samples over the 2d scatter plots on the left panel. It is interesting that in these 2d plots, we can see that the elliptically symmetric distribution, reported before for natural achromatic images [42], also happens in the T and D channels.
The right panel shows the result of a divisive normalization transform applied to the responses of the linear sensors. Divisive normalization implies saturation in each dimension, but (as opposed to the crude dimensionwise saturation done in the chromatic channels) here the saturation of the response of a sensor for certain stimulus depends on the activity of the sensors tuned to other textures [22, 62]. Saturation is apparent in the 3d scatter plots because the higher contrast patterns in the achromatic plot have been pushed toward the DC axis and the lowbrightness region has been expanded. In the chromatic cases, saturation is also apparent since the lowsaturation region has been expanded.
The 2d scatter plots show how, due to divisive normalization, the elliptically symmetric distribution characteristic of localfrequency representations change to this fourleafclover shape, as in the case of the color distribution after the saturation (previous figure, topright scatter plot).
Figure 14 shows that saturation operations also lead to bimodal marginal PDFs for chromatic sensors together with classical results for marginal PDFs [25, 104, 108–110]. These bimodal marginal PDFs had only been reported for achromatic texture sensors [40, 44].
Regarding wellknown results, Fig. 14 (top left) shows how the first layers contribute to equalization of the PDF of the responses associated to brightness: von Kries adaptation expands the range of the responses to the stimuli under darker illumination, and the saturation contributes to reduce the peak at the dark region [25, 109]. In the chromatic case (bottom left), before von Kries adaptation the tail in the reddish region is heavier (half of the samples are under the reddish CIE A illumination). Then adaptation reduces the bias in the PDF, and saturation leads to a bimodal PDF of reduced support in the redgreen sensors (yellowblue sensors behave similarly). The column at the center displays heavytailed PDFs in the case of linear texture sensors, either achromatic (center top) or chromatic (center bottom), with decreasing variance depending on the frequency [104, 108, 110].
On the other hand, the right column and bottomleft plot of Fig. 14 show how the joint distributions with a mode in each quadrant (fourleafclover shapes) in Figs. 12 and 13 lead to the bimodal marginal PDFs. These marginal PDFs are not specific of the considered dataset: they appear in the van Hateren radiance calibrated dataset and in the Foster–Nascimento–Amano dataset [69, 70], as reported in [43, 44], respectively. This shape appears when applying divisive normalization saturations with appropriate exponent: in [44], we proposed a functional form for this marginal related to the parameters of the divisive normalization, and this kind of fourleafclover joint PDFs and resulting bimodal marginal also appear when optimizing divisive normalization for image coding [100] (personal communication from the authors).
According to Eq. (8). analytical modeling of these marginal PDFs can be helpful to characterize the performance. However, in this illustrative section, we just want to show new evidences (now for chromatic sensors) about the fact that the family of possible PDFs after divisive normalization is not restricted to Gaussian, as sometimes assumed [111].
The suggestions made in this Appendix are actually quantified using the proposed Gaussianization tool in Sect. 5.
Appendix C: Performance of RBIG estimators of I for tstudent and Gaussian sources
In this appendix we justify the use of a specific RBIG estimator for the transmitted information (Eq. (7)), for imagelike sources r and sensorylike systems \(\boldsymbol{x} = s(\boldsymbol{r}) + \boldsymbol{n}\). As a convenient reference, we also consider the transmitted information in the trivial case \(\boldsymbol{x} = \boldsymbol{r} + \boldsymbol{n}\) when both signal and noise are Gaussian.
Natural images are known to be nonGaussian since empirical image histograms are found to have heavier tails than Gaussian PDFs (see Appendix B and [104, 108, 110]). This motivated the use of different sorts of models (such as Gaussian scale mixtures [112], mixtures of heavytailed distributions with controlled correlation [33], \(L_{p}\)symmetric densities [113], Gaussian densities with signaldependent covariance [44], etc.). In this appendix, we assume a simpler image model based on tstudent densities defined in a local frequency domain. We do this for convenience in sample generation and in the computation of an analytical ground truth for transmitted information. Image models based on tstudent have been used in natural image coding [114], and they are a common illustrative example when discussing the properties of natural images [32, 42, 44]. Another advantage of tstudent models is that they can be turned into Gaussian PDFs by increasing the degreesoffreedom parameter ν that controls the kurtosis of the density.
Figure 15 describes both a simple linear+nonlinear noisy sensory system and a procedure for sample generation. For a simple computation of the transmitted information, the linear and nonlinear stages of the sensory system match the elements of the image model. First, the linear transform identifies the independent components of the images (because it uses the inverse of the selected mixing matrix), and then it marginally equalizes the outputs (because it uses the marginal cumulative density functions (CSFs) of the selected tstudent PDFs to lead to a joint uniform PDF, a dcube of size A). Finally, the response in this uniform domain is subject to uniform noise, eventually with different amplitudes \(a_{i}\) for each coefficient. The advantage of this idealized setting is that the transmitted information can be computed analytically and samples are easy to obtain with proper choices for the transforms.
In this setting, synthetic images are obtained in the following way. First, samples drawn from the uniform density in the dcube are passed through the inverse univariate CDFs of the selected tstudent PDFs to obtain independent univariate heavytailed samples. Then these independent sources are mixed using a \(d\times d\) mixing matrix. In order to have sensible image samples, the mixing matrix for this illustration is the inverse of three sets of 2DDCT filters of size \(3\times 3\) (\(d=27\) as in the experiments done with real images). The tstudent sources are defined in a coloropponent space (the same used in the model). Therefore the resulting opponent images after the inverse DCTs are linearly mixed again according to the ATDtoLMS matrix to finally obtain \(9\times 9\) image patches in the LMS color space. Note that, given the known frequency and color meaning of the ith column of the mixing matrix, if the amplitudes of the tstudent variables are multiplied by a frequency and color dependent factor, then we can reproduce the classical \(1/f\) spectrum of natural images [104, 109, 110, 115] and the relative energy of the opponent channels [30].
The analytical transmitted information is also easy to compute using Eq. (8). First, the joint entropy of the noise is \(h(\boldsymbol{n}) = \sum_{i_{1}}^{d} \log _{2}(a_{i})\) because it is drawn from a drectangle of sizes \(a_{i}\). Second, we see that \(T(\boldsymbol{x})=0\) because the components of the noisy response are independent since the PDFs of \(s(\boldsymbol{r})\) and n are uniform drectangles aligned with the axes. Finally, the computation of \(\sum_{i=1}^{d} h(x_{i})\) is also easy because noise additivity implies that the marginal PDFs are the convolutions of the PDFs of the deterministic response and the noise. That means the convolution of two unitvolume rectangles of support A for the response and \(a_{i}\) for the noise. This leads to marginal PDFs with truncatedpyramid shape. Therefore the entropy integral can be broken into the known entropy integrals of a rectangle and a triangle, and hence \(h(x_{i}) = \frac{Aa_{i}}{A} \log _{2}(A) + \frac{a_{i}}{A} \log _{2}(e^{1/2} A)\) for the case \(a_{i}< A\). These amplitudes have to be interchanged if \(a_{i}>A\).
An analytical solution is also possible in the trivial case (Gaussian source, identity transform, and Gaussian noise independent of the response). In that case, using that \(I(\boldsymbol{r},\boldsymbol{x}) = h(\boldsymbol{x})  h( \boldsymbol{n})\) and the known entropy of the Gaussian, we have \(I(\boldsymbol{r},\boldsymbol{x}) = \frac{1}{2} \log _{2} ( 2 \pi e (\Sigma _{r} + \Sigma _{n}) )  \frac{1}{2} \log _{2} ( 2 \pi e \Sigma _{n} )\).
Table 2 shows the relative error with regard to the analytical value (in percentage of the actual information) in the two cases, tstudent and Gaussian. We compare the RBIGbased expressions (7) and (6) with different implementations of classical mutual information estimators based on kNN estimators of entropy [79, 80] and a recent improvement of the Kozachenko–Leonenko estimator [81]. Different values of the kurtosis (from more imagelike \(\nu = 3, 4\) to more Gaussian \(\nu =100\)) are explored, as well as different number of samples in the estimation.
The results show that whereas the method proposed in [81] shows better behavior for Gaussian sources, the estimator proposed here, Eq. (7), gives better results with heavytailed samples and the kind of systems considered in this work.
